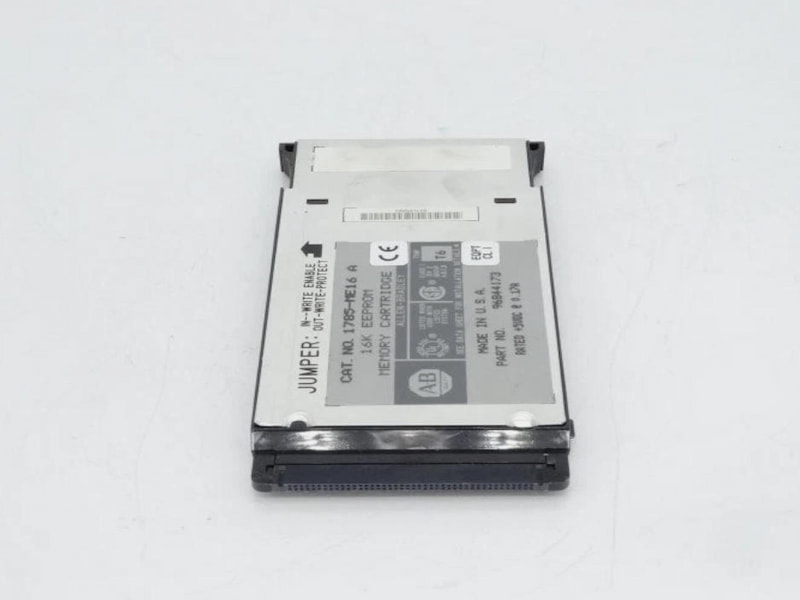

Allen-Bradley 1785-ME16 PLC-5 16 K Words Memory Memory Module

Allen-Bradley 1785-ME16 PLC-5 16 K Words Memory Memory Module

Description

PLC-5 EEPROM 16K (NOT FOR CNET PLC-5)：

PLC5 processors are available in a range of I/O capacity and memory size

Can be connected in a variety of networks for distributed processing and distributed I/O

1771 I/O products offer a full range of digital and analog I/O (including intelligent I/O) in a rugged modular assembly.

Installation Information

Installing the Memory Module：

1. Turn off power to the I/O chassis and processor.

2. Insert the memory module firmly but gently into the processor with the keying pin in the down position. When the memory module is inserted correctly you will hear the connector pins on the back of the memory module snap together with the mating connector in the processor.

Removing the Memory Module：

1. Turn off power to the I/O chassis and processor.

2. Grasp the finger grip tabs and firmly pull the memory module out of the processor.

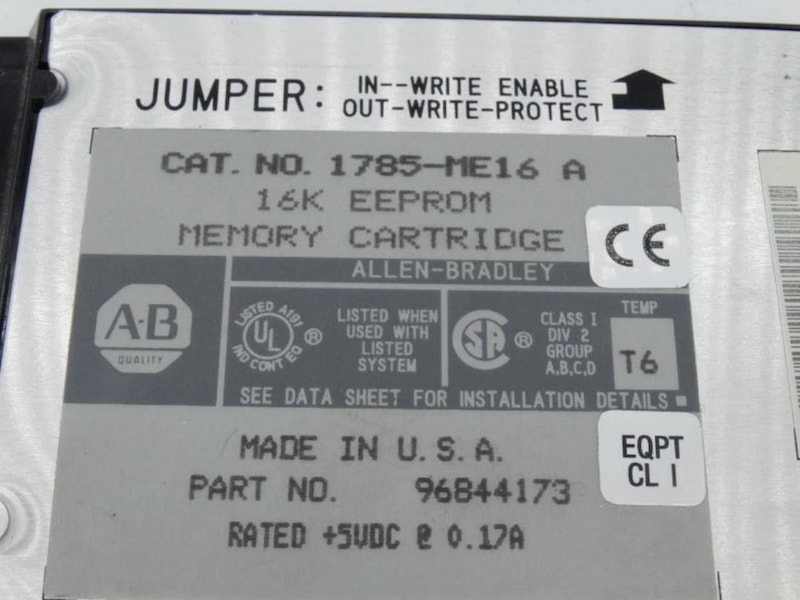

Using the Write Protection Jumper：

The write protection jumper allows you to program the memory module. The memory module is packaged with the jumper in the correct position to write to the memory module.

After writing to the memory module, remove the write protection jumper using a pair of needle nose pliers. Store the jumper in a safe place for future use. Once you remove the jumper, you cannot write to the memory module.

Technical Specifications
