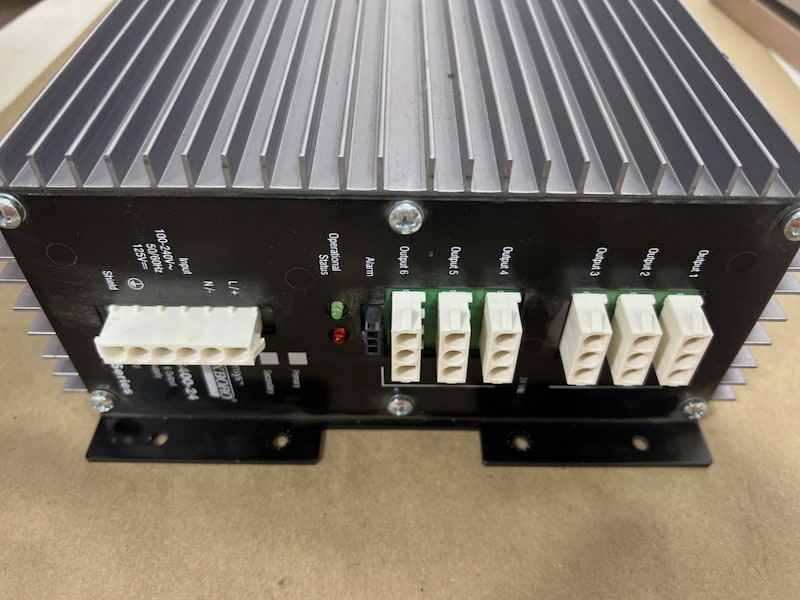

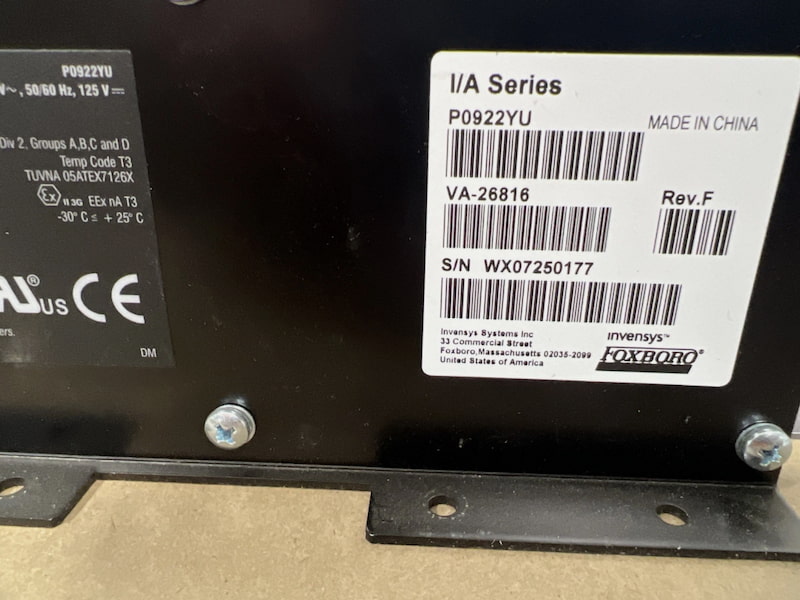

Foxboro P0922YU Power Supply

Foxboro P0922YU Power Supply

Description

The Foxboro™ DCS Standard 200 Series power supplies provide 24 V DC to standard 200 Series baseplates. The Model FPS400-24 is a 400 W power supply that is agency certified for use in Division 2 and Zone 2 applications. Different input voltage power supplies are offered:

  120/240 V AC or 125 V DC input (P0922YU)

  24 V DC input (P0922YC)

These power supplies are the only power supplies that have been tested and qualified by Foxboro DCS for use with 200 Series Fieldbus Modules (FBMs).

For sites where a lower-powered and/or smaller sized solution than the FPS400-24 power supply is desired, the FPS240-24 and FPS120-24 power supplies are available.

Features

• Wide range of AC and DC input voltages
• High efficiency
• Power factor correction
• Dual stage current limiting
• Overvoltage shut down circuitry
• Transformer isolated 24 V DC output
• Class 1, DIV 2, Zone 2 applications
• UL®, UL-C and CENELEC Certifications
• G3 rating for harsh environments
• Power for external field devices
• Convection cooling (no fans)
• Gasketed and sealed housing
• Horizontal or vertical DIN rail mounting
• Holes for bracket or wall mounting
• Relay (form C) status alarm output
