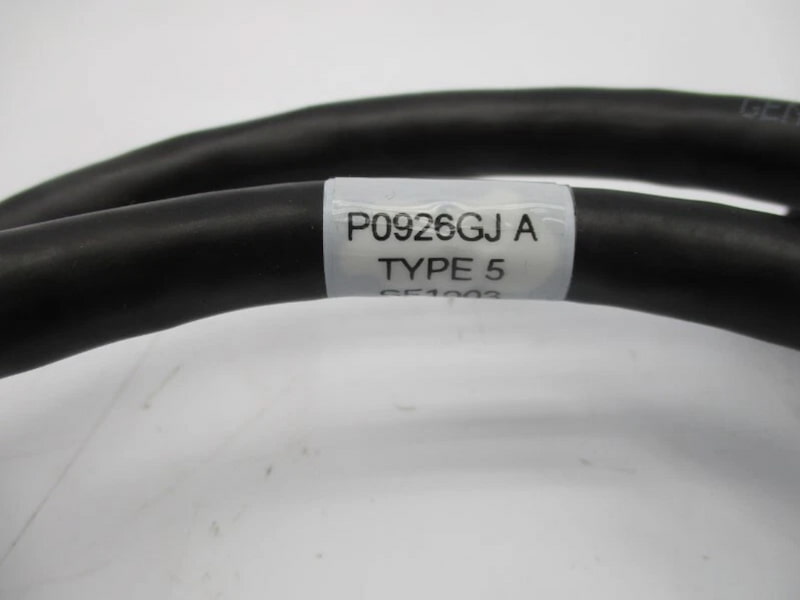

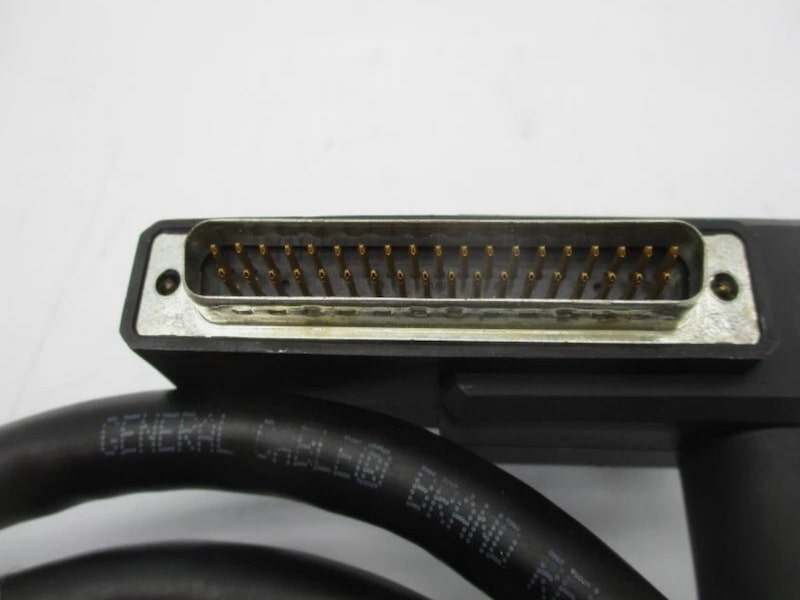

Foxboro P0926GJ Termination Cable

Foxboro P0926GJ Termination Cable

Description

The FBM230 has four ports - each can be individually configured in software for RS-232, RS-422 or RS-485. This provides a single FBM230 the flexibility to connect to multiple similar but not identical devices.Physical wiring is in accordance with Electronic Industrial Association (EIA) standard RS-232, RS-422 or RS-485.

The FBM230 and its associated termination assembly (TA) accommodate several types of connections to single ported devices; direct connection to devices; connection to modems when used with the RS-232 communication interface, and multidrop connections to RS-485 devices. Intrinsic safety devices can be connected between the TA and the field device.

Features

• Four ports - each can be individually configured in software for RS-232, RS-422 or RS-485
• Supports RS-232, RS-422 or RS-485 communication interface standards
• I/O software drivers downloadable from a library of available protocols
• Up to 2000 DCI block connections
• Communicates with up to 64 RS-485 or up to 4 direct connect RS-232 or RS-422 devices
• Integrates field device data into a Foxboro control database
• Field mounted
• Class G3 (harsh) environments

Technical Specifications
