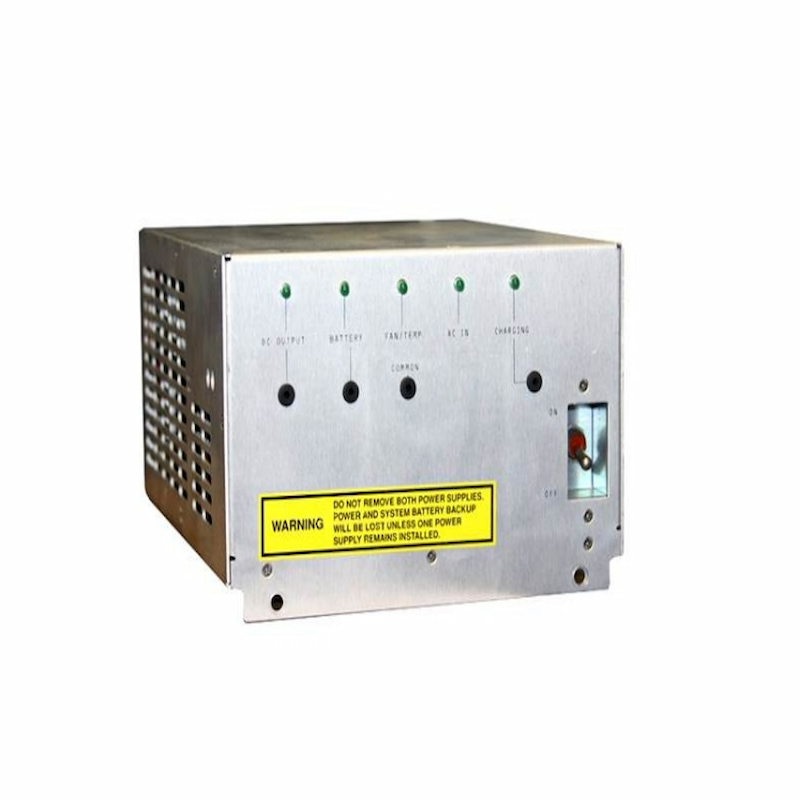

Honeywell 51198947-100F DCS Power Supply

Honeywell 51198947-100F DCS Power Supply

Description

Input:

1.AC input: Operates from line voltage 85 to 264 VAC.

2.Also compatible with (48 Vdc) batteries.

Output:

1. DC output: Nominally rated at 25.25 Vdc at a 10 amp load when powered from the Ac line.

2. DC output: 24.25 Vdc when powered from a 48V battery.

3. Charging circuit for the 48V battery included.

4. Line-frequency output: Nominal 6 Vac, rated at 35 milliamps load for line frequency synchronization.

Operating Temperature:

1. Full load operating temperature range: -20 to +55 deg C.

2. Output load capability derating linearly above 55'C at 0.5 amp/deg C

3.Maximum temperature: +65 deg C.

Technical Specifications
