The FC-IOCHAS-0001R is a redundant I/O chassis for Honeywell control systems, providing a secure enclosure and backplane for mounting and managing multiple I/O modules.
Marque :
HoneywellNuméro d'article :
FC-IOCHAS-0001RDescription :
IO chassis for redundant IO modulesOrigine :
USACondition :
NewDimension :
222.4 mm x 482.6 mm x 280 mmPoids :
8.5 kgPaiement :
Bank Transfer

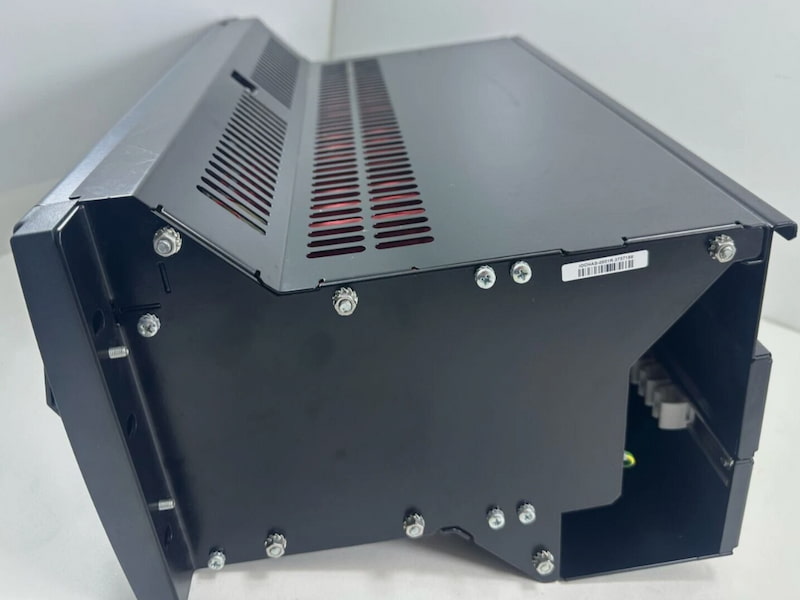

Honeywell FC-IOCHAS-0001R IO chassis for redundant IO modules
Description
The IOCHAS-0001R is a chassis for up to 9 pairs of redundant IO modules.
A 19" chassis has 21 slots for modules (each 4TE wide). These slots are numbered 1 to 21, starting at the left-hand side of the chassis. In the IOCHAS-0001R, slots 1 to 18 are available for IO modules. They are configured in pairs.
The IO modules in the odd numbered slots (and the IO-0001 in slot 20) are controlled by Control Processor 1.
The IO modules in the even numbered slots (and the IO-0001 in slot 21) are controlled by Control Processor 2.
Slot 19 cannot be used.
Slot 20 and slot 21 contain the IO-0001 modules.
A cover plate assembly at the front of the chassis shields the flatcables of the IO modules. This cover can be swung upwards to access the flatcables. To swing the cover upwards, unlock it by moving the two locking slides horizontally towards the middle of the chassis. The backside of the IO cover assembly provides room for a tag number assignment drawing.
The backside of the IO housing is covered by an IO back cover plate that can be removed by rotating the half-turn locking screw anti-clockwise.
Technical Specifications
| Manufacturer | Honeywell |
| Part Number | FC-IOCHAS-0001R |
| Ordering Information | FC-IOCHAS-0001R |
| Product Catalog | Experion® PKS C300 |
| Description | IO chassis for redundant IO modules |

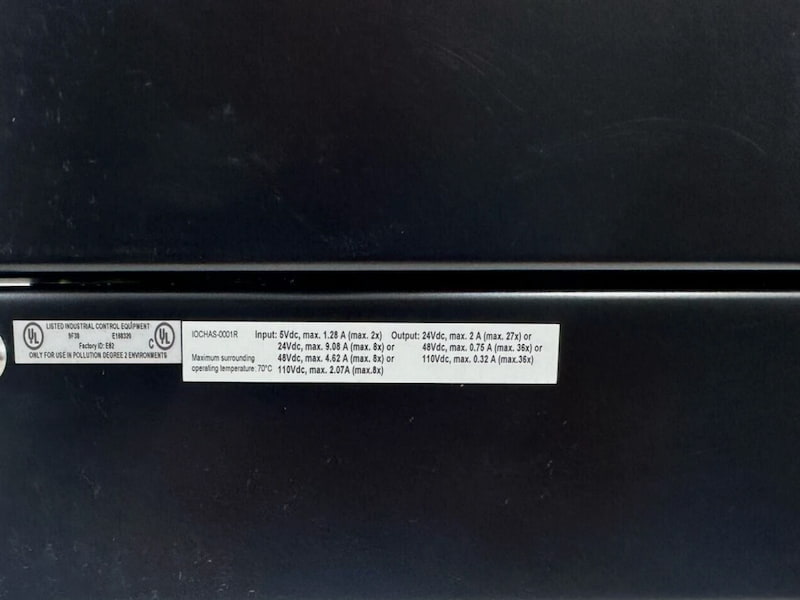

| Voltage | 5 vdc |
| Current | 35 mA |
| Dimensions | 222.4 mm x 482.6 mm x 280 mm |
| Weight | 8.5 kg |
