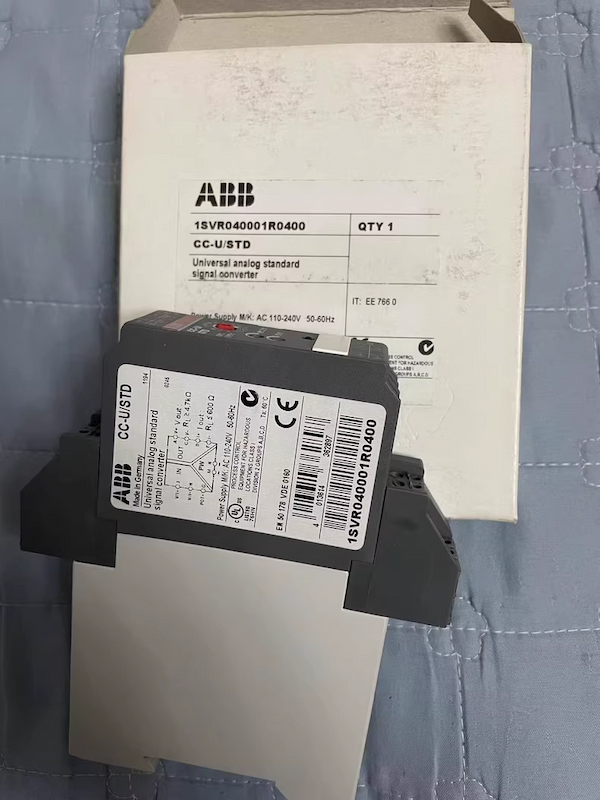

ABB CC-U/STD 1SVR040001R0400 Universal Signal Converter

ABB CC-U/STD 1SVR040001R0400 Universal Signal Converter

Functional Description

The CC-U/STD is a standard analog signal converter from the CC-U range. This converter, with 3-way

electrical isolation, operates with a rated control supply voltage of 110-240 V AC. It provides short-circuit

proof signal outputs, pluggable connecting terminals and configurable detection of input voltage signal

interruption (low fail safe / high fail safe). 28 input signal ranges (16 standard and 12 non-standard) and 41

output signal ranges (8 standard and 33 non-standard) can be configured by means of directly accessible

lateral DIP switches. The gain and the offset adjustment is made via front-face operating elements. Applied

supply voltage is displayed by a green LED.

Technical Specifications
