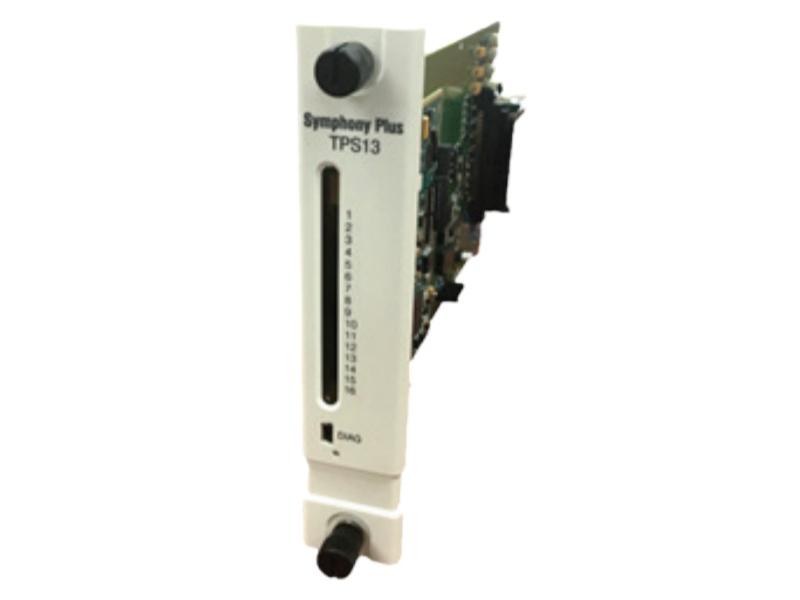

ABB SPTPS13 Turbine Protection Module

ABB SPTPS13 Turbine Protection Module

Functional Description

The SPTPS13 module represents the latest generation of speed detection and turbine protection modules for

the Symphony Plus Harmony Rack platform. This module has been designed to replace and consolidate all

existing older Harmony Rack products of this type (SPTPS02, SPFCS01 and SPTSA01). As a result of its multi-

function purpose, the SPTPS13 is compatible with several termination units (TPTU02 and NTDI01, NTDI02)

and can interface to several Harmony function codes:

a. FC 145/79/83/84 for TPS02 replacement applications

b. FC 145 for FCS01 replacement applications

c. FC 103 for TSA01 replacement applications

In addition, the SPTPS13 makes use of three small adapter boards (TPS, FCS, TSA) which can be used to

configure the functionality and the I/O channel mapping of the SPTPS13 to match those of the three

modules being replaced. Therefore, the SPTPS13 has three different modes of operation, depending on what

adapter board is plugged on to the motherboard.
