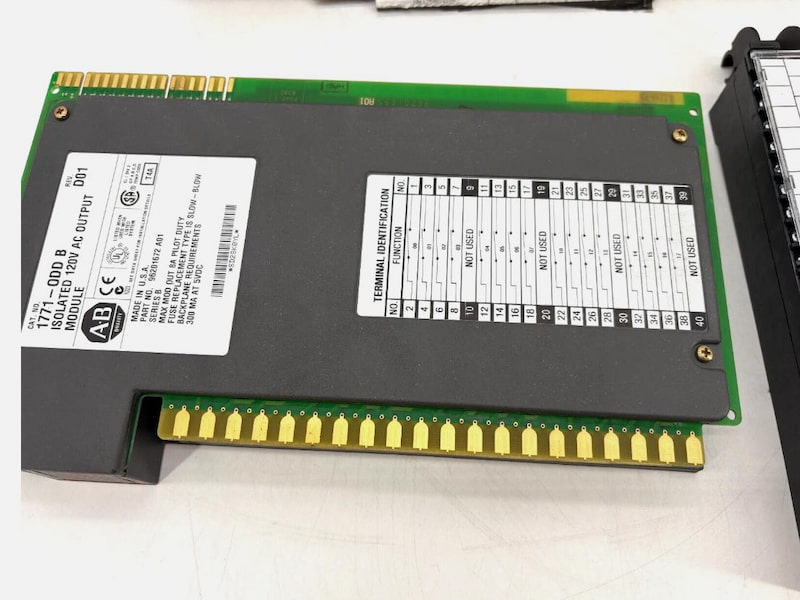

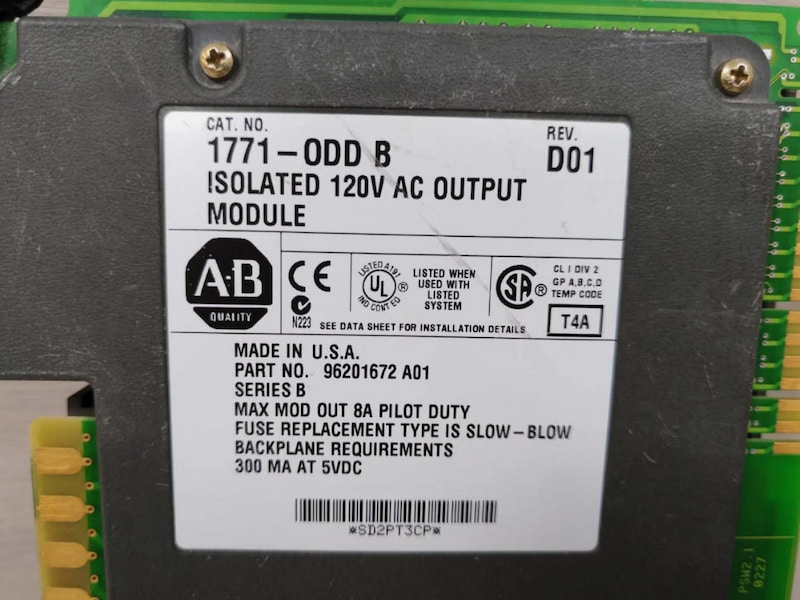

Allen-Bradley 1771-ODD AC (120V) Isolated Output Module

Allen-Bradley 1771-ODD AC (120V) Isolated Output Module

Installation Information

The 1771-ODD module is designed for a 10mA minimum current on each output circuit. The total continuous current the module supports is 8A (2A maximum per channel). If this rating is exceeded, the module overheats and damage may occur.

Inserting the Module into the Chassis：

1. Position the module so that the circuit board on the rear of the module lines up with the top and bottom card guides in the chassis.

2. Slide the module into the chassis.

3. Press firmly to seat the module in the chassis backplane connector.

4. Swing the module locking latch down into place over the front of the module.

Connecting Wiring to the module：

You make connections to the module through the 1771-WN field wiring arm shipped with the module. The arm pivots on the chassis to connect with the terminals on the front of the module. The wiring arm allows the module to be removed from the chassis without disconnecting wiring.

1. Make certain all power is removed from the module before making wiring connections.

2. Swing the wiring arm up into position on the front of the module. The locking tab on the module will secure it into place.

3. Use the label on the front of the wiring arm to identify your wiring

Technical Specifications
