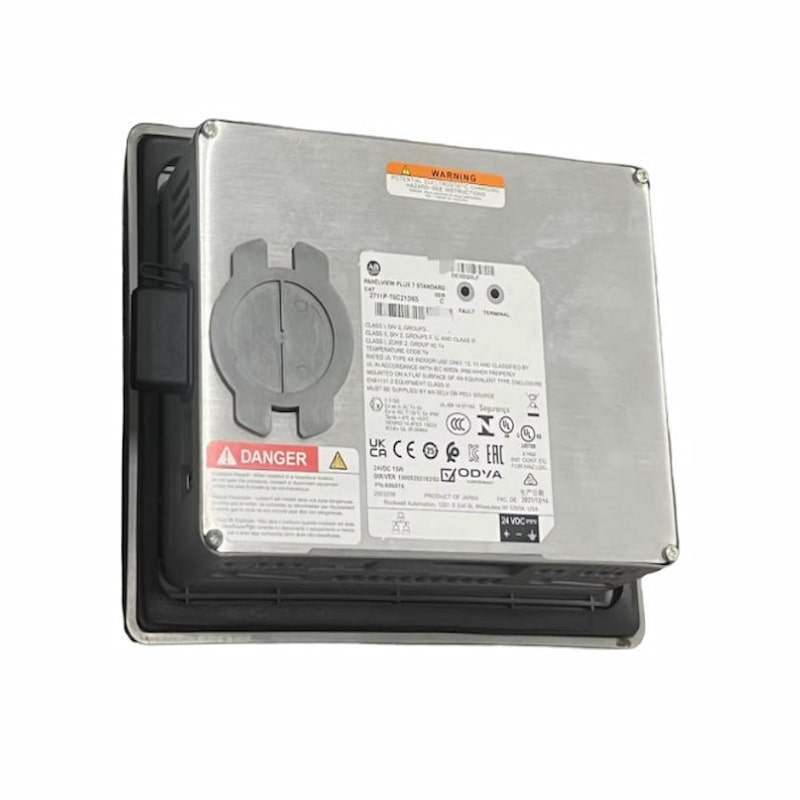

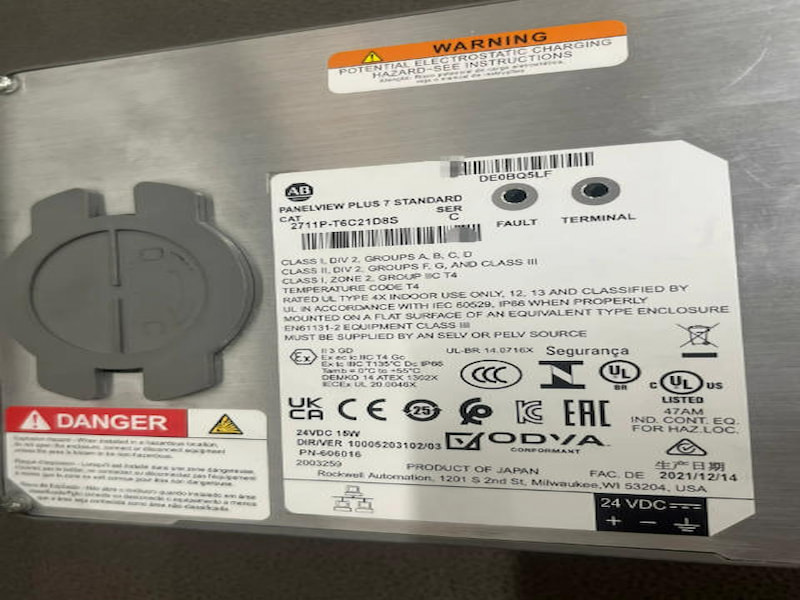

Allen-Bradley 2711P-T6C21D8S PanelView Plus 7 Standard Terminals

Allen-Bradley 2711P-T6C21D8S PanelView Plus 7 Standard Terminals

Description

The PanelView™ Plus 7 Standard terminals are operator interface devices. They monitor and control devices that are attached to ControlLogix® 5570 and CompactLogix™ 5370 controllers on an EtherNet/IP™ network. Animated graphic and text displays provide operators a view into the operating state of a machine or process. Operators interact with the control system by using touch screen input.

The PanelView Plus 7 Standard terminals include these features:

• Terminal functionality permits connection to 1 controller, up to 100 screens, and up to 500 alarms.

• FactoryTalk® View Machine Edition software provides a familiar environment for creating HMI applications.

• Windows CE operating system with desktop access for configuration and third-party applications.

• Ethernet communication that supports Device Level Ring (DLR), linear, and star network topology.

• PDF viewer to access PDF files that are stored on the terminal.

• More screen options including 4-in., 6-in., 7-in., 9-in., 10-in., 12-in., and 15-in. terminals.

• Widescreen on three sizes, 4-in., 9-in., and 12-in. terminals.

• Greater screen resolution.

• Terminals are available with Allen-Bradley® branding, or with no branding for customers that want to put their own branding around the terminal.

• Certifications including Class I, Div. 2; Class II, Div. 2; Class III; ATEX, IECEx, and INMETRO Zones 2 and 22.

PanelView Plus 7 Standard, Touch, 6 inch, Ethernet, 24V DC：

Offers display sizes from 4 to 15" with wide screen and keypad options

Offers one controller and up to 25 displays and 200 alarm messages

Offers Ethernet 1 x RJ45 10/100 Mb Auto-MDI/MDI-X with IEEE 1588 support

Features single or DLR Ethernet ports for network connectivity

Technical Specifications
