Functional Description

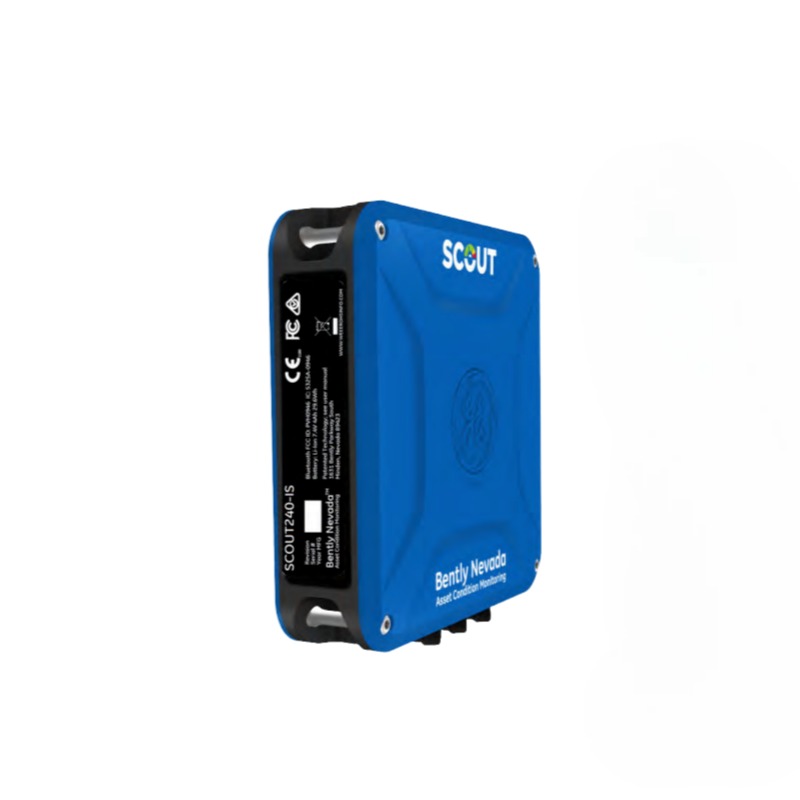

The SCOUT240IS is an intrinsically safe portable data collector solutions designed to monitor machinery

conditions in hazardous environments. Both are rated ATEX Zone 1 / Zone 21 (for gases and non-conductive

dust) and CSA Class 1 / Div 1. These small form-factor, rugged devices take vibration recordings and upload

the collected data for detailed analysis in System 1.

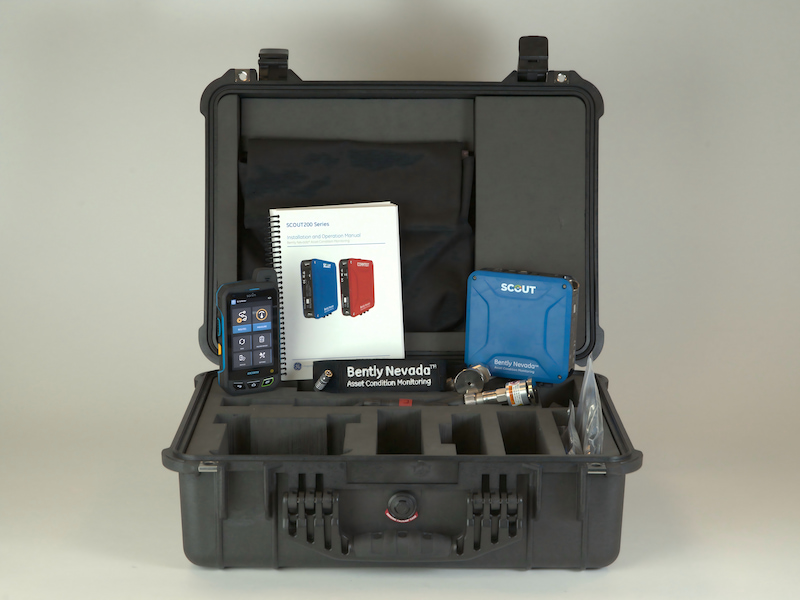

This is a two-part solution. The SCOUT data collector uses Bluetooth to communicate with a wireless,

industrial handheld device running the S1 Collector app.

You can carry the data acquisition module using a shoulder strap, allowing you to focus on your job and

move safely between machines. Vibration recordings are viewed and stored on the available handheld

device. The handheld runs the Android OS, so you can use it like any smartphone or tablet to take pictures

and video, send text messages, check email, make phone calls, track your location, create SOS alerts, and run

other enterprise apps on the same device.

The high performance data acquisition module provides long battery life, and is light weight & rugged. You

can sample up to four sensor channels simultaneously using optional tachometer or Keyphasor triggering.

The data acquisition module provides up to ten hours of continuous use, while supporting an Fmax up to 80

kHz and 12,800 lines of spectral resolution.

System 1, paired with SCOUT220IS and SCOUT240IS, enables you to track all of your machinery using a

single enterprise monitoring system. Use System 1 to prepare routes, analyze data, detect long-term trends,

and set and detect alarms. Then transfer the routes between System 1 and your SCOUT device using WiFi, file

transfer, cellular network, or a USB cable.

Features

· Battery life of 10 hours allows the data collector to run all day.

· Five year warranty.

· Rugged, water, and dust resistant (IP-65), drop-tested, with intrinsically safe variants.

· Easy to carry: lightweight handheld unit, shoulder strap for data collector, keepers for sensors.

· Safety breakaways on both shoulder strap and sensor cables.

· Upgradable industrial handheld smartphone or tablet.
