The DS200CPCAG1ABB is a contactor pilot board for GE Mark V turbine control systems, used for control signal guiding and high-power contactor driving.
Marque :
GENuméro d'article :
DS200CPCAG1ABBDescription :
Contactor Pilot BoardOrigine :
SwitzerlandCondition :
NewDimension :
170 mm x 180 mm x 120 mmPoids :
0.5 kgPaiement :
Bank Transfer

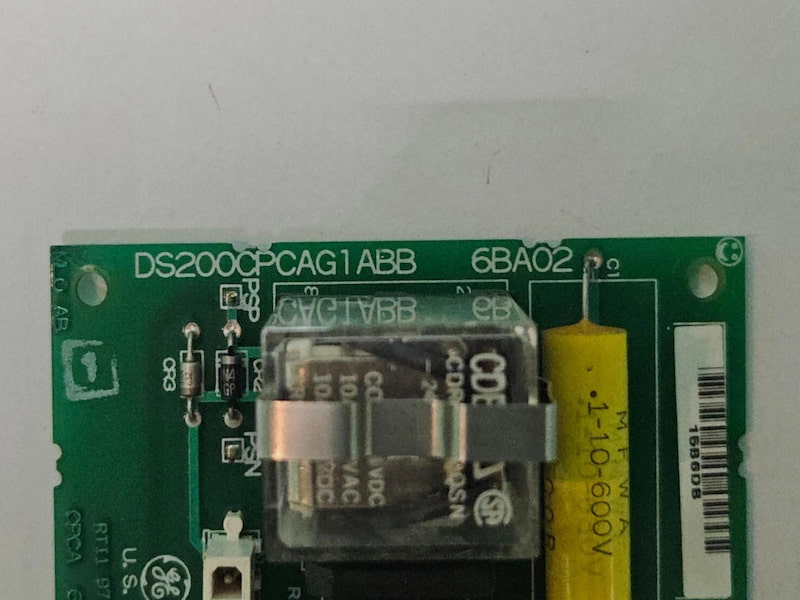

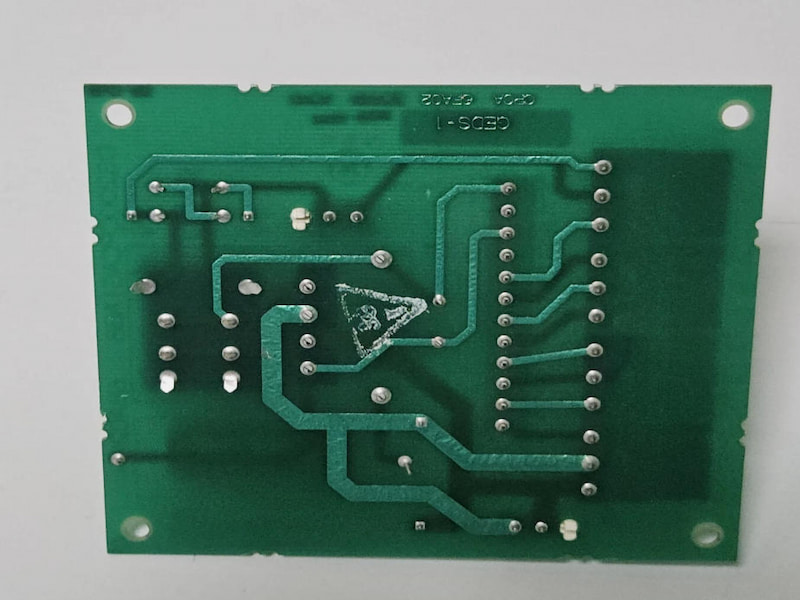

GE DS200CPCAG1ABB Contactor Pilot Board
Description
The GE DS200CPCAG1ABB contactor preboard is a key interface module in the GE Speedtronic Mark V control system, responsible for contactor drive and signal conversion. It uses the built-in 24VDC 15A power relay to convert the weak electrical instructions from the control unit into signals that can drive large-power contactors, achieving reliable on-off control of the unit start-stop circuit. It is a core component that ensures the safe and stable operation of the power system.
This industrial-grade circuit board features a high protection design, integrating rectification, voltage stabilization, and signal isolation circuits, with excellent anti-interference ability and environmental adaptability. Its standard slot-type installation structure is compact, and the clear terminal layout facilitates quick wiring and maintenance on-site, enabling long-term stable operation in harsh working conditions such as turbine control and power stations.
Features
Model: DS200CPCAG1ABB, Type: Contactor Preboard
Compatible System: GE Speedtronic Mark V Control System
Core Configuration: Built-in 24VDC 15A power relay, supports 12 signal connections
Interface Design: 1 12-pin connector + 2 2-pin connectors + 4 sets of terminal blocks
Core Functions: Control signal conversion, contactor drive, circuit protection and voltage regulation
Protection Capability: Integrated voltage stabilizing, rectifying and isolation circuits, excellent anti-electromagnetic interference performance
Installation and Maintenance: Standard slot installation, compact structure, clear wiring, facilitating quick maintenance
Quality Assurance: Original industrial-grade components, compatible with harsh industrial site conditions, stable and reliable operation
Technical Specifications
| Manufacturer | GE |
| Part Number | DS200CPCAG1ABB |
| Ordering Information | DS200CPCAG1ABB |
| Product Catalog | MKVIe |
| Description | Contactor Pilot Board |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 38 cm x 22 cm x 3 cm |
| Weight | 0.4 kg |
