Functional Description

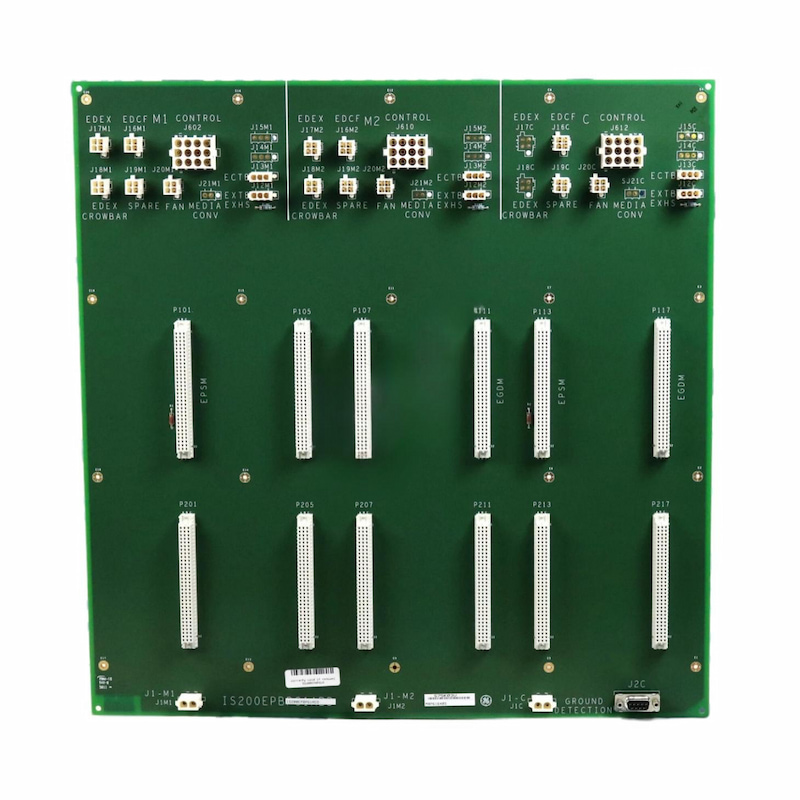

The IS200EPBPG1A power backplane holds three independent power supplies (EPSM) that supply power to

the M1, M2, and C controllers. It also holds three ground detection modules (EGDM). EPBP accepts 125 V dc

from the adjacent Exciter Power Distribution Module (EPDM), and distributes logic level power from the

three power supply modules to the three controllers. Each power supply has an independent ON-OFF switch

on the EPDM.

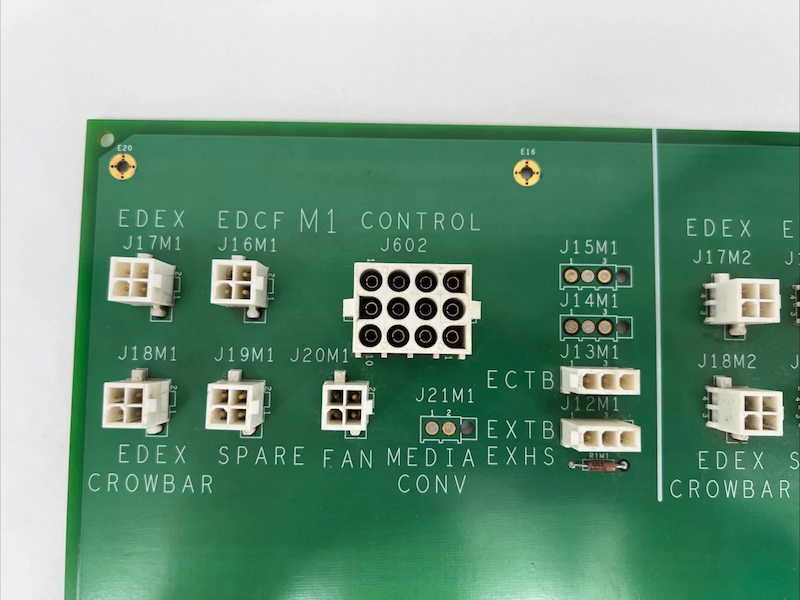

70 V dc and 24 V dc power is distributed from the locking connectors at the top of the backplane to the

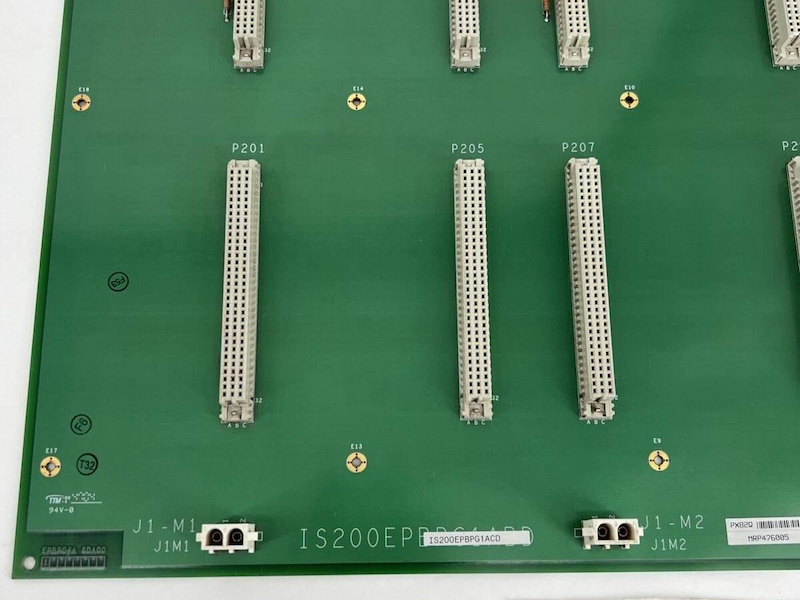

terminal boards. DIN connectors are used for the EPSM power module interface to the backplane.
