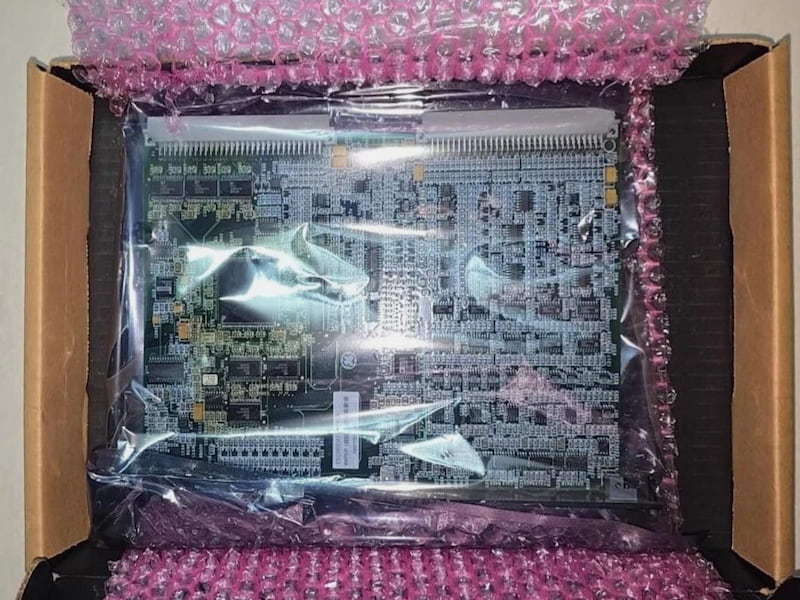

GE IS200TREAH1A Terminal Board

GE IS200TREAH1A Terminal Board

Description

IS200TREAH1A is an emergency trip terminal board that is compatible with the Mark VIe turbine control system. It is used in conjunction with the WREA sub-card and the turbine I/O module to serve as a hub for transferring signals such as on-site speed measurement, trip circuits, and emergency stop signals. It collects on-site signals such as tooth disc rotation pulses, trip circuit voltages, and external emergency stop contacts, and transmits them uniformly to the protection computing unit for interlock judgment.

The board integrates multiple pulse collection, voltage detection, and a three-out-of-two solid-state trip output circuit. It is compatible with gas and steam turbine generator safety protection cabinets and supports multi-axis speed monitoring and multi-level hard trip circuits. The terminal module is modular and detachable, facilitating on-site wiring, maintenance, and fault troubleshooting. It can adapt to the wide-temperature operation environment of industrial cabinets for a long time.

Features

Integrates 6-channel passive pulse acquisition, supports three-axis dual speed probes, and accurately collects gear disc rotation speed signals

Four DC voltage detection channels, monitor the on/off status of 24-125V trip circuits

Three-out-of-two voting solid-state trip output, ensuring safe and reliable hard shutdown of the unit

Dual plug-in type terminals, providing 48 standard wiring points, facilitating wiring

Works in a wide temperature range of -30℃ to +65℃, with strong stability of surface mount technology

Equipped with WREA sub-card to expand external emergency stop contact input channels

Standard rack compatibility, compatible with the entire series of Mark VIe protection modules
