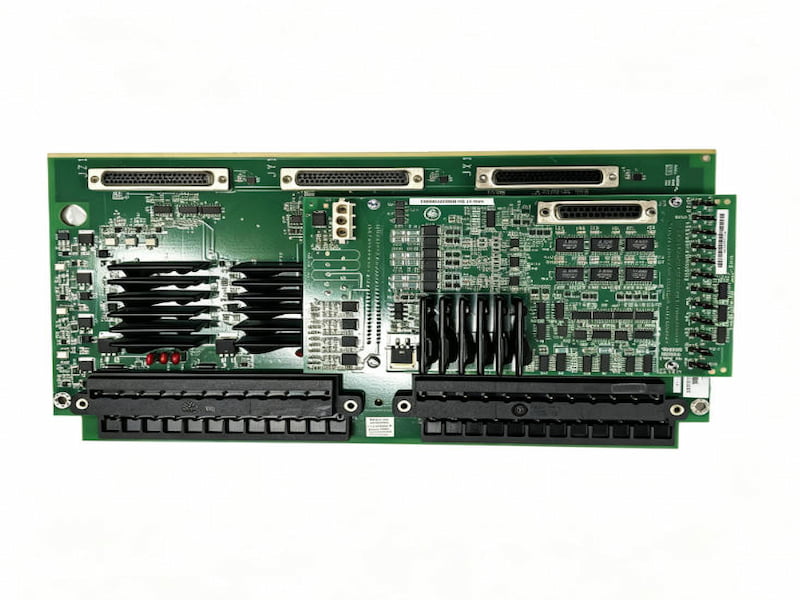

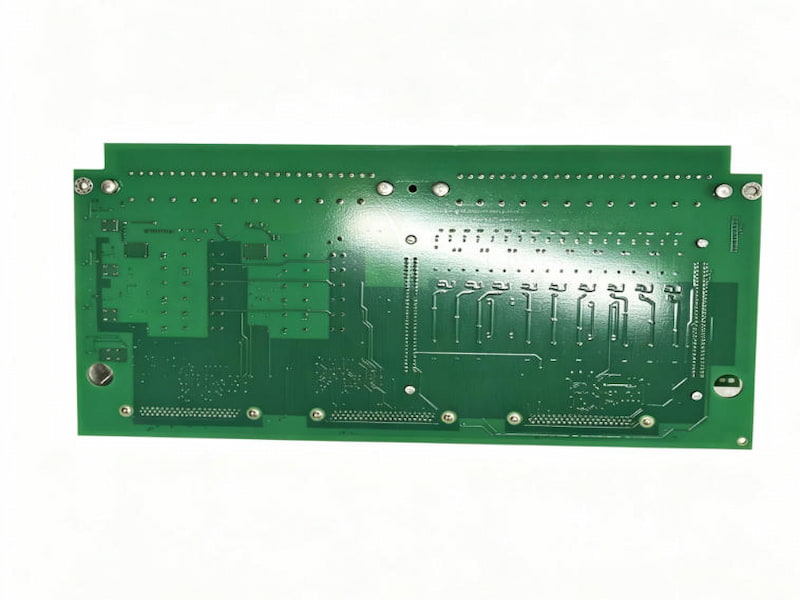

GE IS200TREAS1A Turbine Emergency Trip Terminal Board

GE IS200TREAS1A Turbine Emergency Trip Terminal Board

Description

IS200TREAS1A is a dedicated emergency trip terminal board for aircraft retrofit machines, which is compatible with the IS220YPROS1A safety backup protection I/O module of GE Mark VIeS safety turbine control system. It is used in conjunction with the WREAS sub-card and is responsible for collecting on-site hard-wired signals such as the turbine speed pulse, trip circuit voltage, and external emergency stop contacts. After signal processing, it transmits the signals to the protection module for safety interlock calculation.

The board integrates multiple passive speed measurement acquisition, DC circuit monitoring, and three-out-of-two solid-state trip output circuits. It adopts a plug-in terminal structure and is compatible with the safety control cabinet of aircraft retrofit gas turbines. It has complete loop fault diagnosis capabilities and wide-temperature surface-mounted hardware that can withstand the harsh temperature variations and electromagnetic interference environment of industrial cabinets for a long time.

Features

Adapt to the Mark VIeS safety turbine system YPRO protection module, and provide WREAS sub-card to expand emergency stop points

6 channels of passive pulse acquisition, supporting triple-axis dual-speed probe for collecting rotational speed signals

Four 24-125V DC voltage monitoring channels, real-time monitoring of trip circuit status

TMR three-out-of-two voting solid-state trip output, ensuring safe redundancy during shutdown

48 plug-and-play European-style terminal blocks, facilitating on-site wiring and maintenance

-30℃ to +65℃ wide temperature operation, industrial-grade anti-interference circuit design

Built-in circuit break detection self-check, fault signals uploaded to the controller for log recording
