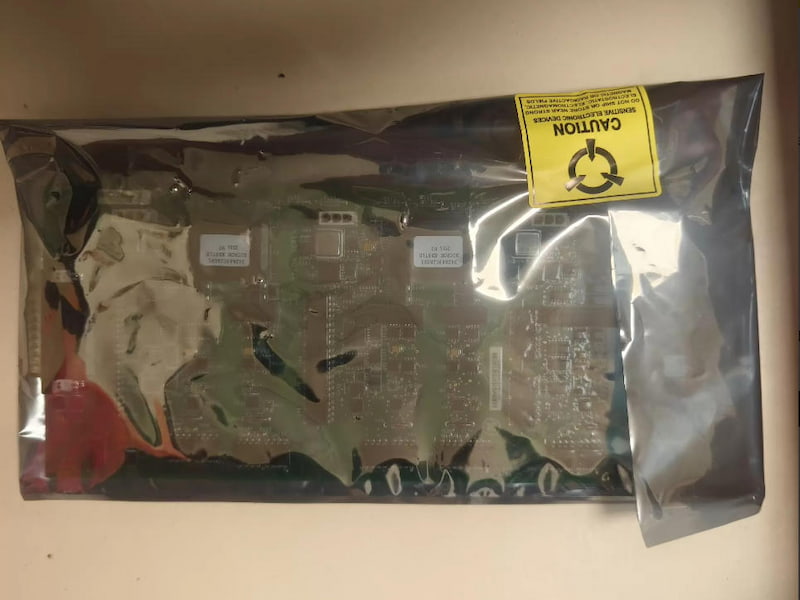

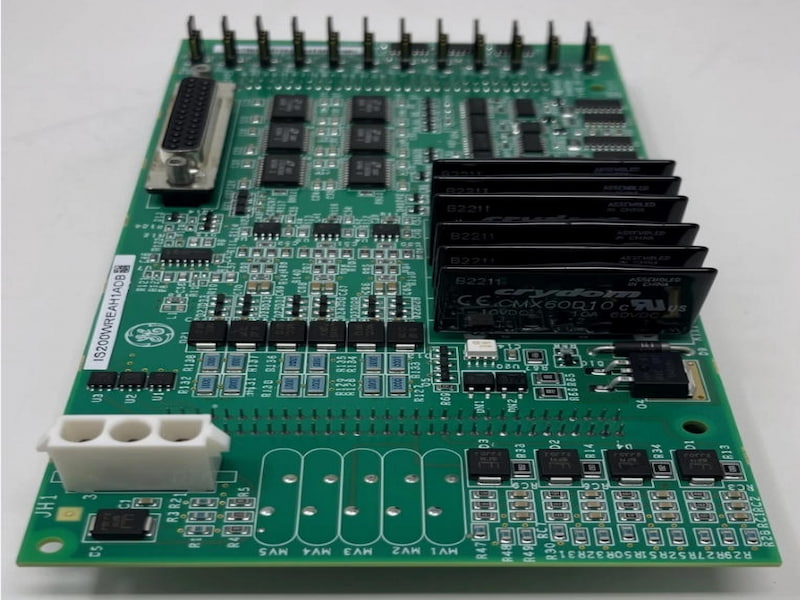

GE IS200WREAH1ACB Aero Trip Terminal Board

GE IS200WREAH1ACB Aero Trip Terminal Board

Description

IS200WREAH1ACB is a trip terminal block that is compatible with the GE Mark VIe control system. It serves as a transfer carrier for the safety protection circuit of the unit, connecting the on-site shutdown signals with the main control system.

The board integrates multiple connection points and can receive various interlock fault signals from the unit. It transmits the trip instructions to achieve emergency shutdown of the equipment. It adopts a safety circuit design and is mainly used for the safety protection control of aircraft conversion gas turbine units.

Features

Matched with GE Mark VIe turbine control system, dedicated terminal board for safety trip circuit

Multi-channel wiring terminals, capable of connecting various local interlock shutdown signals

Safety circuit architecture, reliably triggering unit protection action in fault conditions

Industrial-grade anti-interference design, suitable for long-term continuous operation environment in power plants

Clear terminal layout, facilitating on-site wiring, maintenance and fault troubleshooting

Technical Specifications
