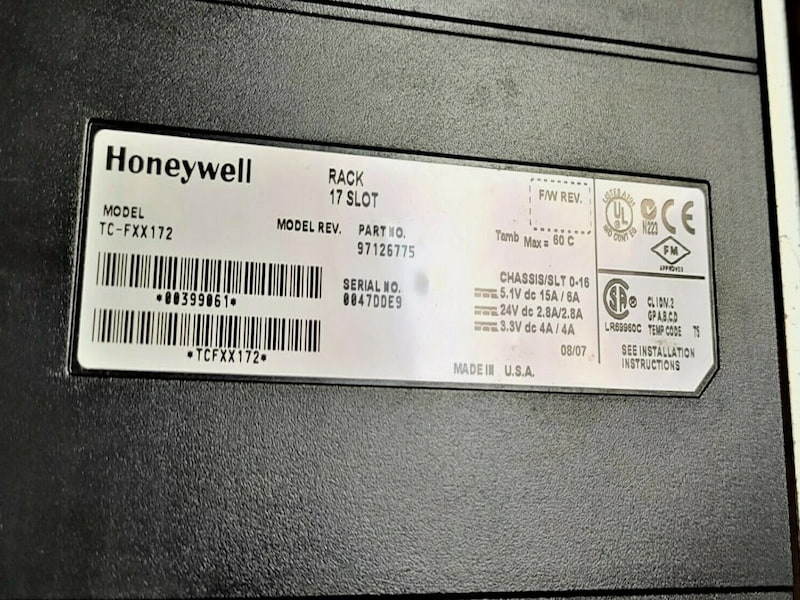

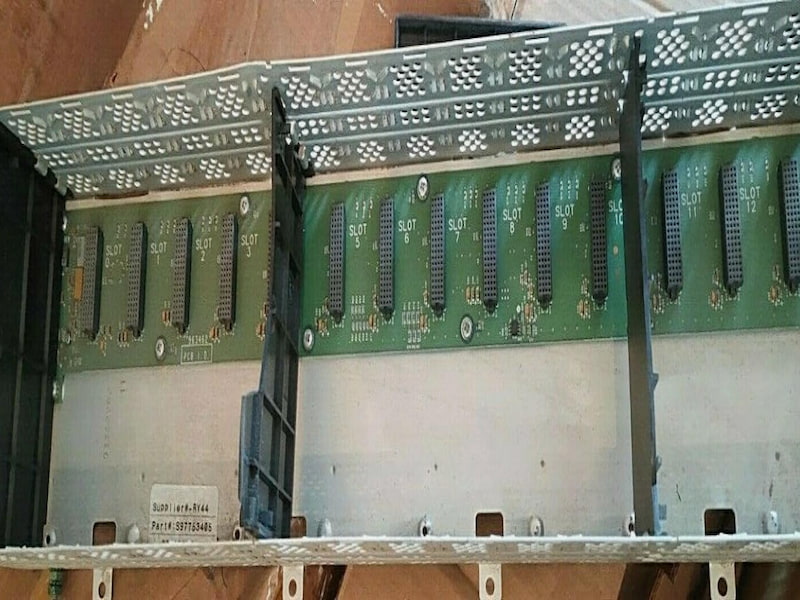

Honeywell TC-FXX172 17 SLOT RACK

Honeywell TC-FXX172 17 SLOT RACK

Description

Experion Chassis Series-A Modules and Platform:

Chassis Input/Output Modules-Series A (CIOM-A) is a chassis based platform. Modules exist in a single-wide and double-wide form factor. Modules are inserted into chassis slot positions; single-wide occupy one slot position while double-wide modules occupy two slots. As a platform, the chassis is host to not only I/O modules, but modules that perform other functions.

Some examples include:

• C200E Control Processor
• Redundancy Module (RM)
• Battery Extension Module
• ControlNet Interface Module (CNI)
• Ethernet Module

Series-A Chassis Types :

Chassis differ by the number of module positions or slots that the given chasses can accommodate. Chassis come in five versions (4, 7, 10, 13, and 17 slot). Some modules are double-wide and will use two chassis positions.

Model Number Conventions (TC and TK):

All model numbers are preceded by a TC- or a TK-. The TC designator indicates that the module is not conformal coated while the TK designator indicates that the module has conformal coating applied. Aside from this the modules are identical.

Technical Specifications
