Functional Description

The RLC16 it's an optional card, for use when the four relays on the IOC4T input /output card are insufficient

for the application and additional relays are required.

The RLC16 is installed in the rear of a rack (ABE04x or ABE056) and connects directly to the rack backplane

via a single connector.

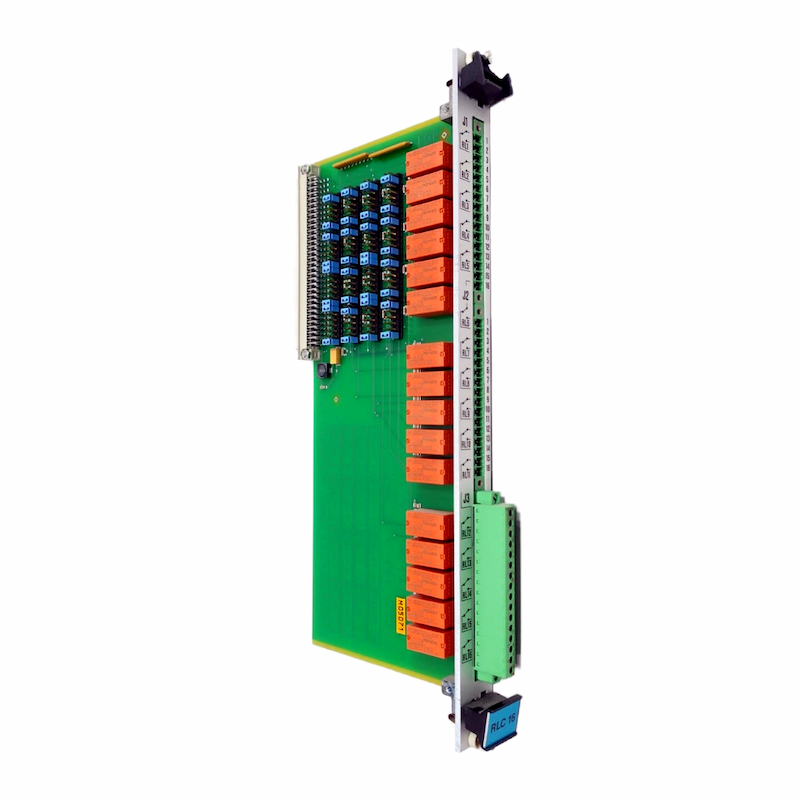

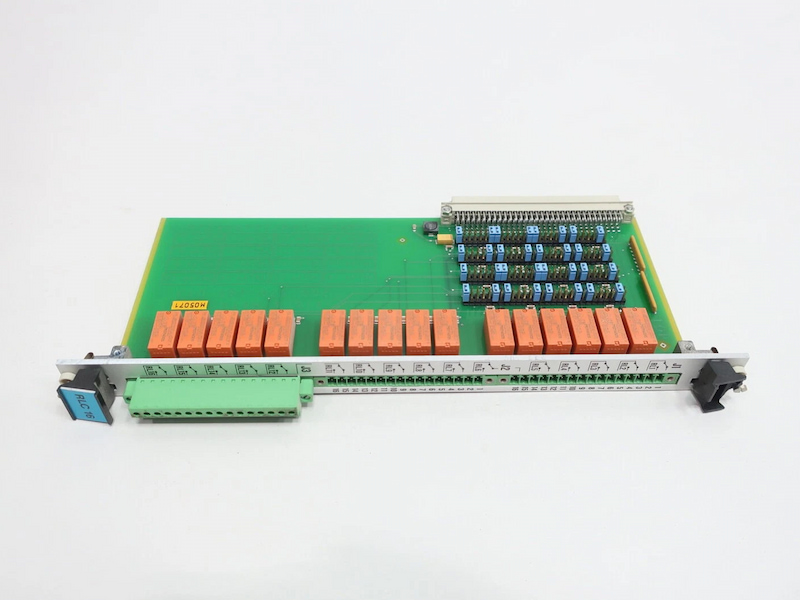

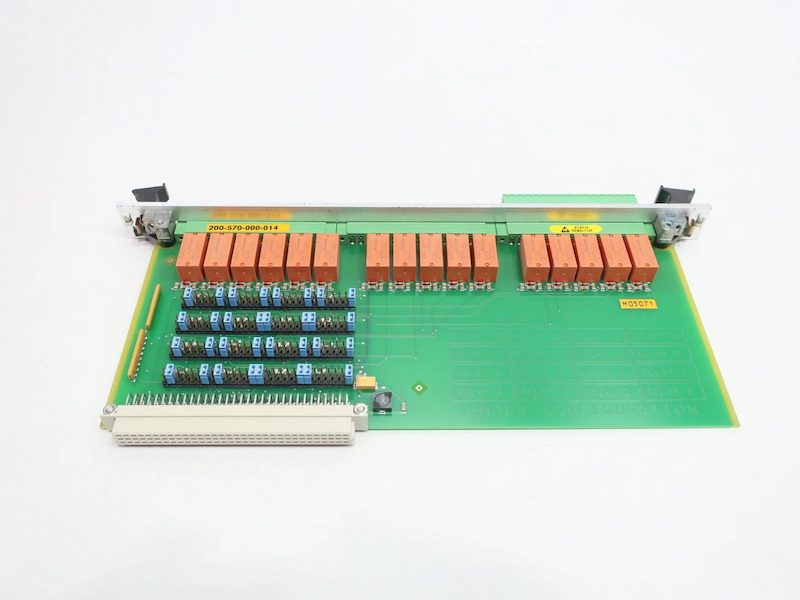

The RLC16 contains 16 relays with change-over contacts. Each relay is associated with 3 terminals on a

screw-terminal connector accessible at the rear of the VM rack.

The relays are controlled by open-collector drivers under software control. Jumpers on the RLC16 card allow

the selection of relay normally energized (NE) or normally de-energized (NDE).

Technical Specifications
