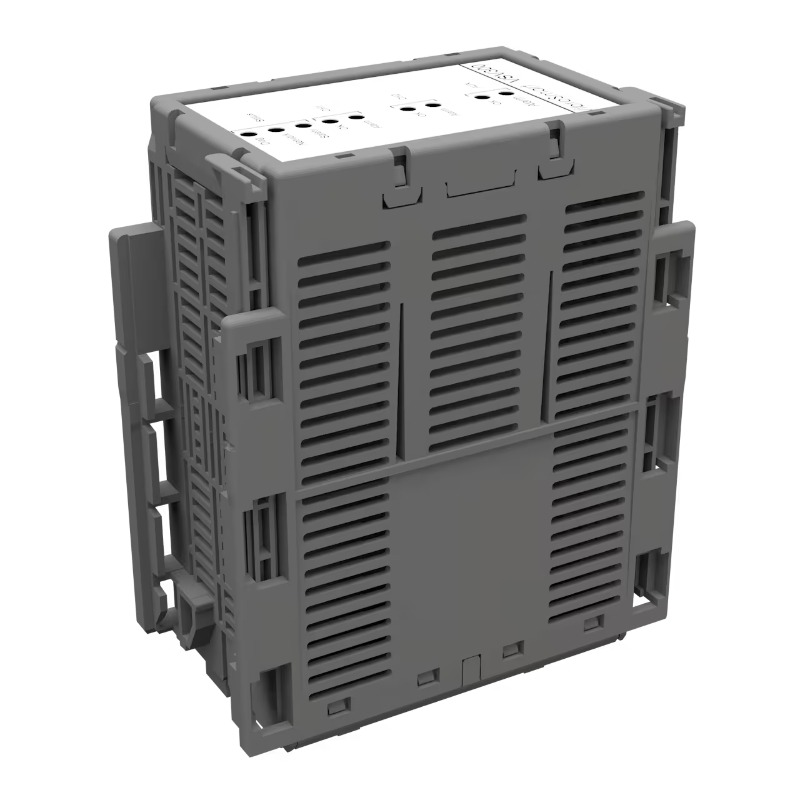

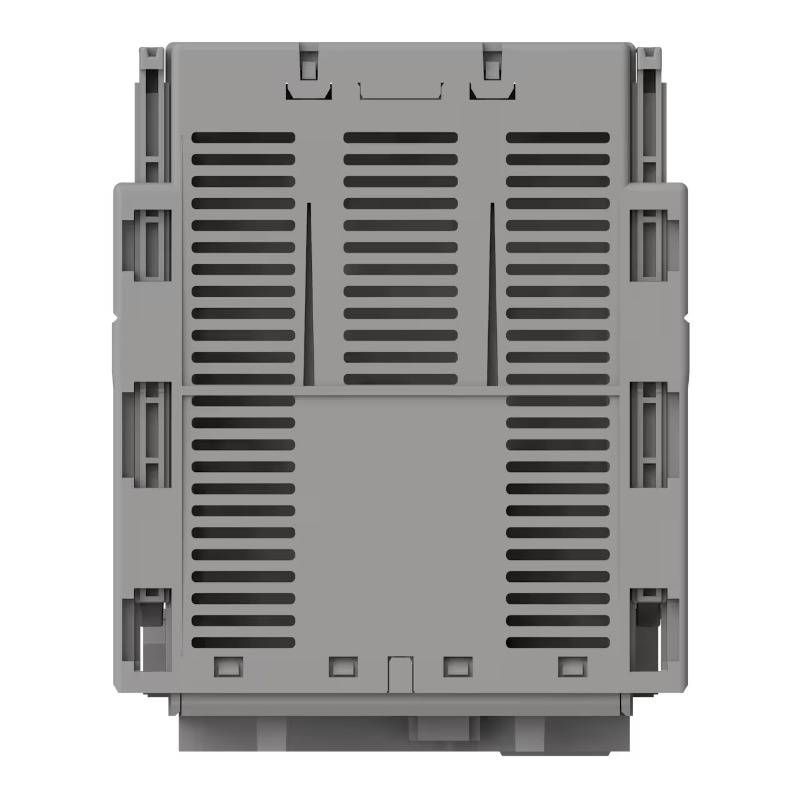

VSV301 600-034 Monitoring Module

VSV301 600-034 Monitoring Module

Functional Description

The VSV301 monitoring module has two independent dynamic vibration channels and one auxiliary channel,

that can be configured as either a tachometer or a DC input channel. The VSV301 module is capable of

standalone vibration monitoring or can be integrated with other vibration modules to create a larger

system with more measurement channels and features.

The VSV301 monitoring module performs the data acquisition and all of the signal processing (filtering,

analog-to-digital conversion, time and frequency domain processing, and resampling) required to produce

processed outputs and extracted data for physical output and data presentation in vibration sight scope.

This includes spectral band extractions, advanced FFT analysis, trending and limit checks (alarm and sensor

OK), and run-up / run-down acquisition.
