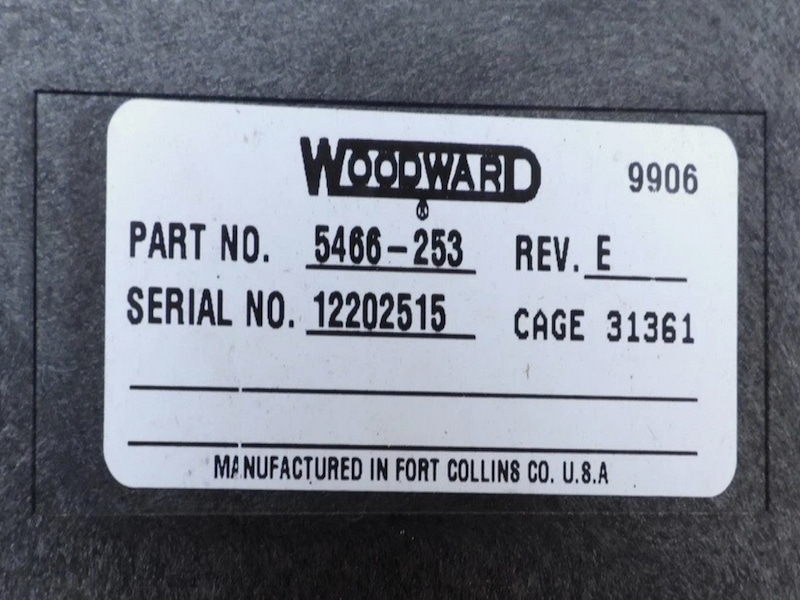

Woodward 5466-253 MicroNet Analog Combo(TMR)

Woodward 5466-253 MicroNet Analog Combo(TMR)

Functional Description

5466-253 is a Analog Combo Module developed by Woodward. It is equipped with circuitry to handle a diverse range of inputs and outputs, making it suitable for a wide array of applications. This module boasts four speed sensor inputs, eight analog inputs, four analog outputs, and two proportional actuator driver outputs, enhancing its flexibility and adaptability. The speed sensor inputs cater to different types of speed sensors, accommodating both magnetic pick-up and proximity probe inputs. This capability ensures seamless integration with various types of rotating machinery and equipment, providing precise and accurate speed measurement.

Features

• For analog inputs, the High Density Analog Combo module supports 4-20 mA input signals. This range is widely used in industrial control and measurement applications, allowing seamless connectivity with a variety of sensors, transducers, and other analog devices.
• In terms of actuator driver outputs, the module offers two proportional actuator driver outputs, each configurable for either 4-20 mA or 20-160 mA operation. This versatile configuration enables seamless compatibility with different types of proportional actuators, empowering precise control over valves, motors, and other proportional devices.
• The module's integration of multiple functionalities into one unit not only saves space but also simplifies system design and reduces wiring complexity. This consolidation of inputs and outputs streamlines the installation process and enhances system reliability, as there are fewer points of potential failure.
• The module's robust design and high-quality components ensure reliable and consistent performance, even in demanding industrial environments. Its adaptability and compatibility with various sensor types and actuator devices make it an ideal choice for industries such as power generation, oil and gas, petrochemicals, and more.

Technical Specifications
