ABB 3BHE009017R0101 XVC724BE101 VLSCD Board

ABB 3BHE009017R0101 XVC724BE101 VLSCD Board

Description

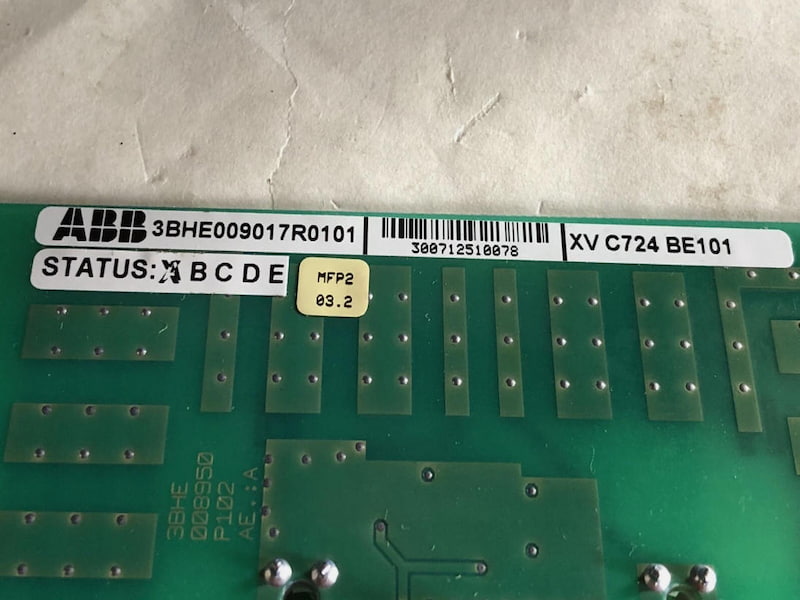

ABB 3BHE009017R0101 (XVC724BE101) is a VLSCD voltage level short-circuit detection control board for ABB's medium-voltage drive system. It is compatible with medium-voltage inverters of ACS6000/ACS800 and other series. The core function is to collect system signals, perform logic control, and detect short-circuit faults, ensuring the safe and stable operation of the drive equipment.

This control board is designed with industrial-grade coated PCB and has the capabilities of moisture-proofing, dust-proofing, and anti-electromagnetic interference. It can adapt to harsh industrial environments ranging from -25°C to +70°C. It integrates high-precision detection circuits and complete protection mechanisms, has a compact structure and standardized interfaces, supports rapid installation and maintenance-free operation, and is the core safety control component of ABB's medium-voltage drive system.

Features

Model: 3BHE009017R0101 (XVC724BE101), Type: VLSCD Short Circuit Detection Control Board

Compatible System: ABB ACS6000/ACS800 Medium Voltage Drive and Industrial Frequency Converter System

Core Functions: Voltage level monitoring, short circuit fault detection, drive logic control, system protection

Process Design: Anti-corrosion coating PCB, low surface current density, strong anti-interference ability

Electrical Characteristics: Wide voltage input, high-precision signal sampling, fast fault response

Protection Mechanism: Overvoltage / Overcurrent / Short Circuit Protection, real-time fault diagnosis, safe and reliable operation

Environmental Tolerance: Working temperature -25°C to +70°C, suitable for harsh industrial conditions

Installation and Maintenance: Compact structure, standard interfaces, easy integration and quick replacement

Technical Specifications
