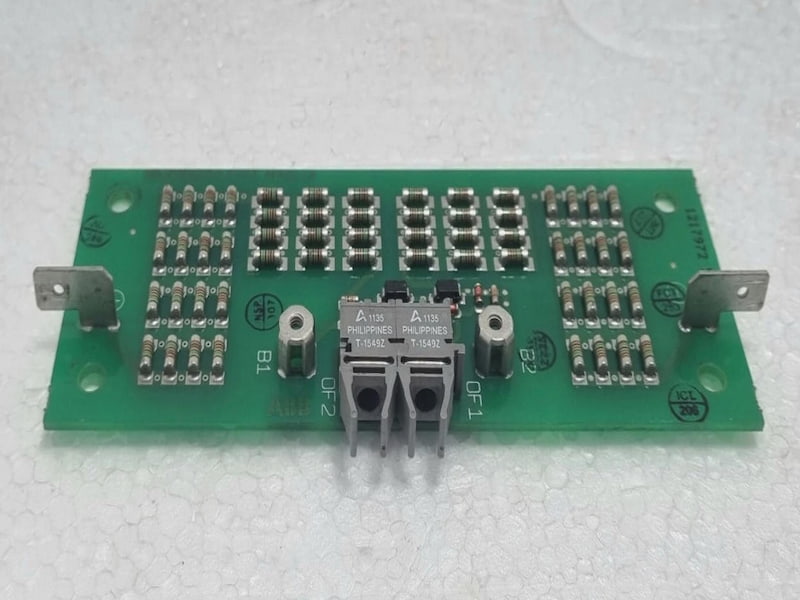

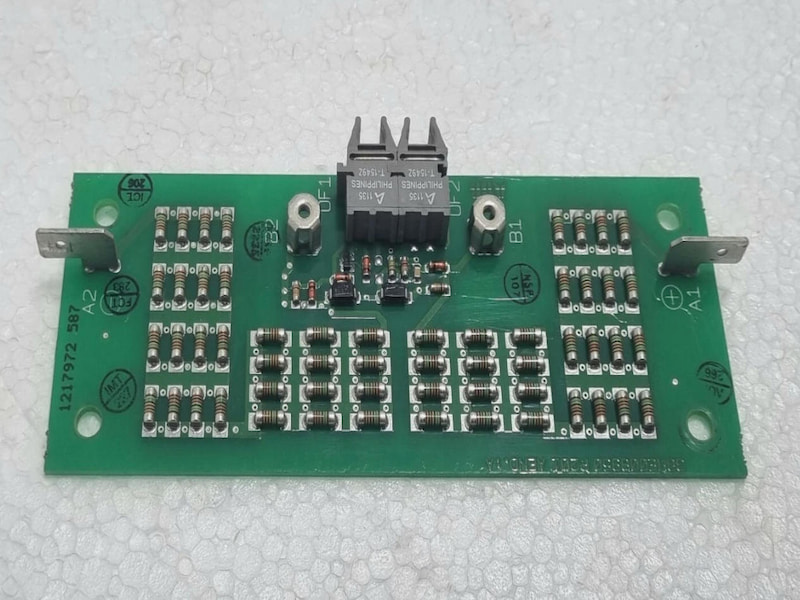

ABB 3BHE009017R0102 VLSCD Board

ABB 3BHE009017R0102 VLSCD Board

Description

ABB 3BHE009017R0102 (XVC724BE102) is a VLSCD ultra-low surface current density control board specifically designed for ABB industrial drive systems. It is compatible with series of inverters such as ACS800/ACS880, and its core functions include signal monitoring, logic control, and IGBT drive signal output for ensuring precise motor operation and system stability.

This control board adopts a low surface current density PCB manufacturing process and a three-proof coating design, which is resistant to electromagnetic interference, moisture-proof, and dust-proof, making it suitable for industrial harsh conditions. It integrates high-precision sampling and processing circuits, featuring comprehensive protection mechanisms such as overcurrent, short circuit, and overvoltage protection. It has a compact structure, standard interfaces, supports rapid installation and maintenance-free operation, and is the core control component of ABB's drive system.

Features

Model: 3BHE009017R0102 (XVC724BE102), Type: VLSCD Control Board

Compatible Systems: ABB ACS800/ACS880 series industrial frequency converters, medium-voltage drive systems

Core Functions: Transmission signal monitoring, logical operations, IGBT drive control, system protection

Process Characteristics: VLSCD ultra-low surface current density design, three-layer coating protection

Electrical Performance: 18–55 VDC wide voltage input, maximum output current of 2.5 A

Protection Mechanism: Overvoltage / Overcurrent / Short-circuit protection, anti-electromagnetic interference, safe and reliable operation

Environmental Adaptability: Operating temperature range of -25°C to +70°C, suitable for harsh industrial environments

Installation and Maintenance: Compact structure, standard interfaces, easy integration, long-term stable and maintenance-free
