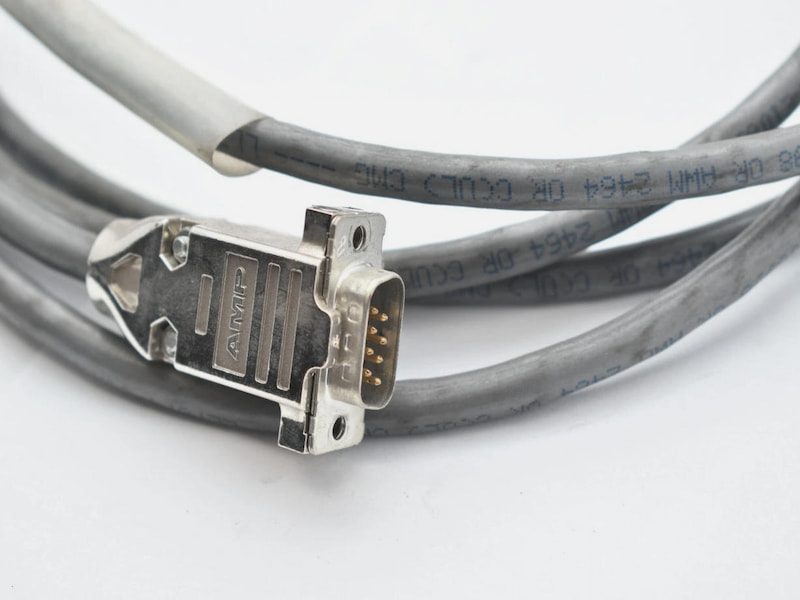

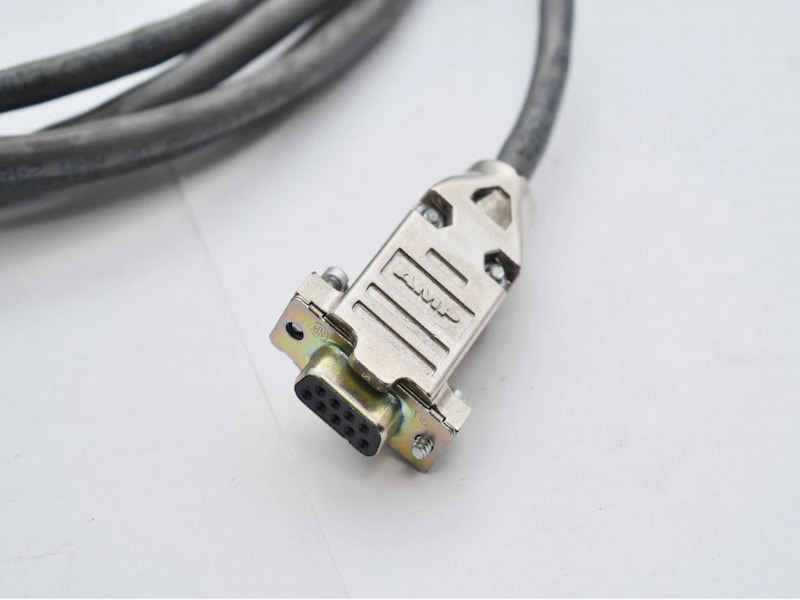

Bently Nevada 136634-0010-01 Monitor extension cable 10 feet

Bently Nevada 136634-0010-01 Monitor extension cable 10 feet

Description

The Bently Nevada 135785-01 is a non-backlit display unit specifically designed for the 3500 mechanical protection system. It serves as the core display component of the 3500/93 system and complies with the API 670 industry standard. It enables local or remote visualization of all equipment monitoring information within the 3500 rack, including channel parameters, system event lists, alarm event lists, and various module operation data. It is a key visual component for online condition monitoring of rotating machinery such as steam turbines and compressors.

This display unit utilizes the high-speed internal network of the 3500 system to achieve real-time data collection and refresh. It supports four installation methods: system face mounting, rack mounting, panel mounting, and independent mounting. When there is no external power supply, it can be deployed up to 100 feet away from the 3500 rack. With an external power supply, the deployment distance can be further extended. A single 3500 rack can connect up to 2 of these display units. The display groups can be customized through the 3500 rack configuration software to meet the diverse monitoring and operation requirements in industrial sites.

Features

• Adapted to the Bently Nevada 3500 mechanical protection system, for the 3500/93 system without backlight display unit
• Core functions: Local/Remote Display System Channels, Module Data and Events, Alarm List
• Complies with API 670 standards, suitable for monitoring scenarios of rotating machinery such as turbines and compressors
• Supports four installation methods, with the option of deploying without an external power supply up to 100 feet, compatible with external power expansion distance
• High-speed internal network communication, RS422 interface, enabling real-time collection and refresh of monitoring data
• Supports custom display group configuration, up to 2 units can be connected on a single rack, meeting the monitoring needs of multiple scenarios
• Industrial-grade environmental adaptability, working temperature range of -20°C to 65°C, suitable for harsh industrial sites
• Power consumption as low as 5.6 watts, as a lightweight visual interactive component for the 3500 system

Technical Specifications
