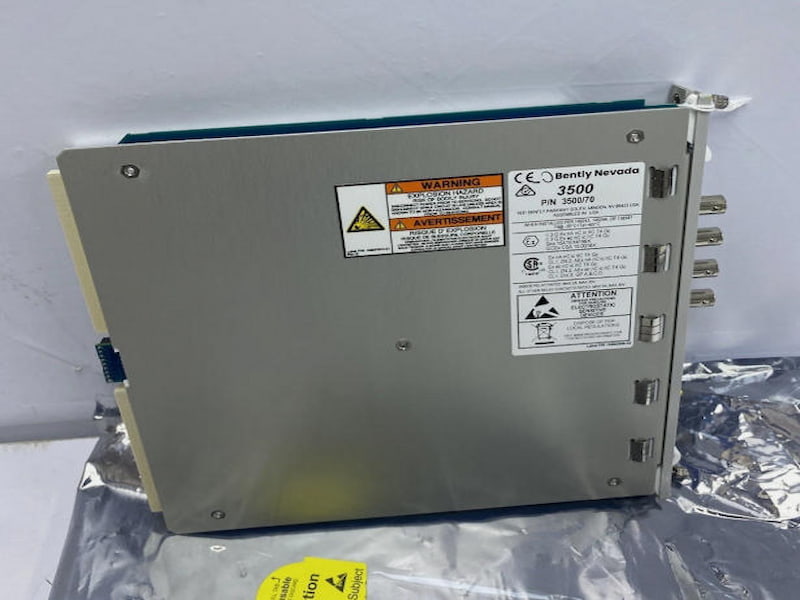

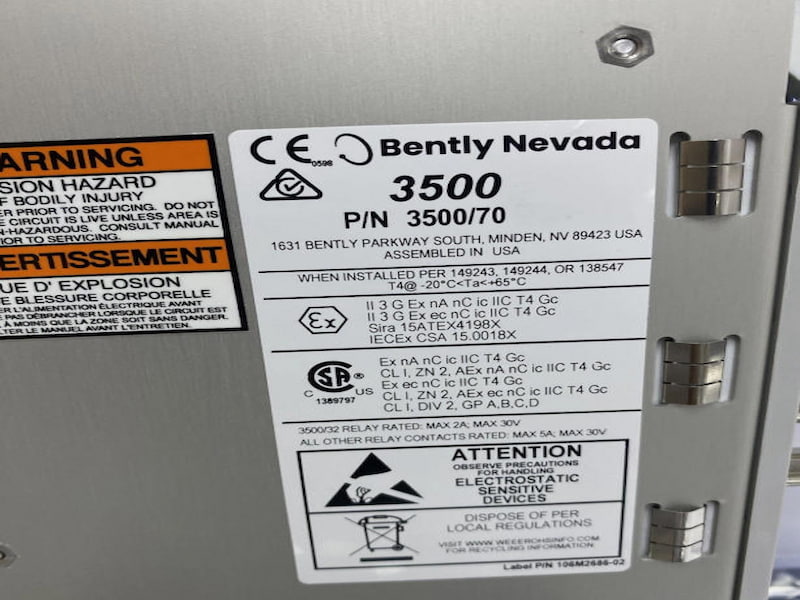

Bently Nevada 3500/70M 176449-09 Recip Impulse Velocity Monitor

Bently Nevada 3500/70M 176449-09 Recip Impulse Velocity Monitor

Description

The Bently Nevada 176449-09 is a 3500 mechanical protection system-specific 3500/70M reciprocating pulse speed monitoring module, specially designed for reciprocating compressors. Its core function is to monitor the vibration status of the compressor crankcase and crosshead. It can receive input signals from seismic sensors and proximity probes and complete signal conditioning. By comparing the monitoring parameters with user-programmed alarm thresholds, it can achieve early warning of equipment abnormalities. It is the core component for online protection and condition monitoring of reciprocating compressors in industries such as petrochemical and power.

This module is designed with four channels, and the channels support paired programming. It can simultaneously achieve synchronous monitoring of up to two functions among pulse acceleration, regular acceleration, reciprocating speed, and low-frequency reciprocating speed. Relying on the 3500 frame configuration software, the monitoring parameters and alarm thresholds of each channel can be flexibly configured. It can also provide key data on compressor operation to help identify equipment failures in advance and reduce unplanned downtime risks. It fully complies with the modular architecture of the 3500 system and can be seamlessly integrated into the system frame.

Features

• Adapted to the Bently Nevada 3500 mechanical protection system, for the 3500/70M series reciprocating pulse speed monitoring module
• Four-channel design, supporting paired programming, capable of synchronously achieving monitoring of up to two vibration-related parameters
• Core functions: Receiving sensor signal conditioning, monitoring the vibration of reciprocating compressors and triggering programmable alarms
• Supports four monitoring function configurations: pulse acceleration, acceleration, reciprocating speed, and low-frequency reciprocating speed
• Equipped with front panel LED status indicators, providing real-time feedback on module operation, communication, and bypass status
• Industrial-grade design, suitable for harsh industrial environments, providing professional mechanical protection for reciprocating compressors
• Compatible with 3500 rack configuration software, allowing flexible setting of alarm thresholds and channel monitoring parameters
• Provides buffered sensor output, recorder output, supporting data synchronous collection and external transmission

Technical Specifications
