The 177313-02-02 is a set of proximity system kit used in the Bently Nevada Machinery Condition Monitoring.
Marque :
Bently NevadaNuméro d'article :
TK-3e 177313-02-02Description :
Proximity System Test KitOrigine :
USACondition :
NewDimension :
195 mm x 299 mm x 248 mmPoids :
5.22 kgPaiement :
Bank Transfer

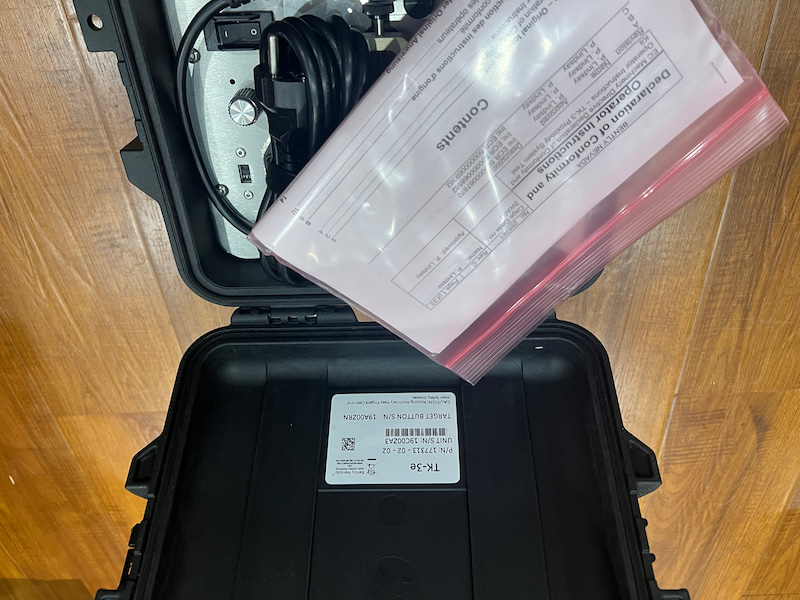

Bently Nevada TK-3e 177313-02-02 Proximity System Test Kit
Functional Description
The TK-3e Proximity System Test Kit simulates shaft vibration and position for calibrating Bently Nevada
monitors. It verifies the operating condition of the monitor readouts as well as the condition of the
proximity transducer system. A properly calibrated system ensures that the transducer inputs and the
resulting monitor readings are accurate.

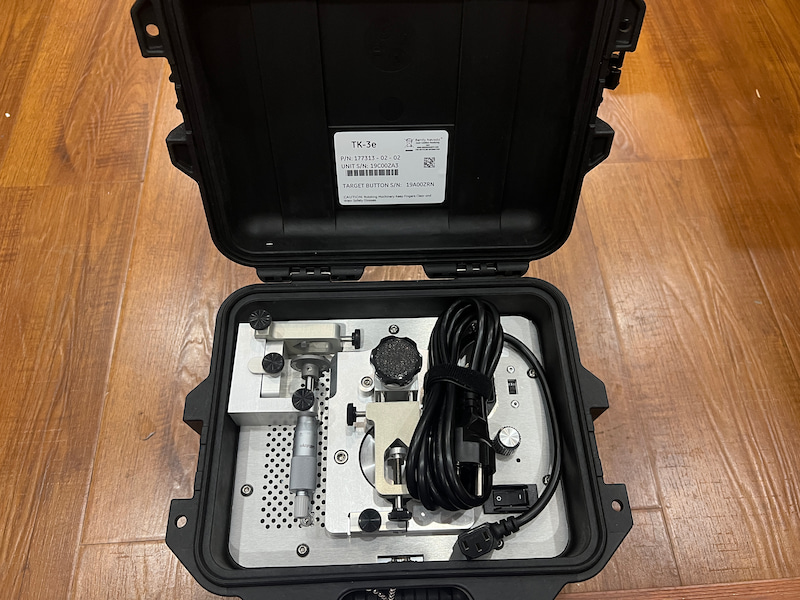

The TK-3e uses a removable spindle micrometer assembly to check the transducer system and position
monitor calibration. This assembly features a universal probe mount that will accommodate probe
diameters from 5 mm to 19 mm (0.197 in to 0.75 in). The mount holds the probe while the user moves the
target toward or away from the probe tip in calibrated increments and records the output from the
Proximitor Sensor using a voltmeter. The spindle micrometer assembly also features a convenient magnetic
base for ease of use in the field.
Technical Specifications
Manufacturer | Bently Nevada |
Part Number | TK-3e |
Ordering Information | 177313-02-02 |
Product Catalog | Machinery Condition Monitoring |
Description | Proximity System Test Kit |
Voltage | 24 Vdc |
Current | 1A |
Dimensions | 195 mm x 299 mm x 248 mm |
Weight | 5.22 kg |
