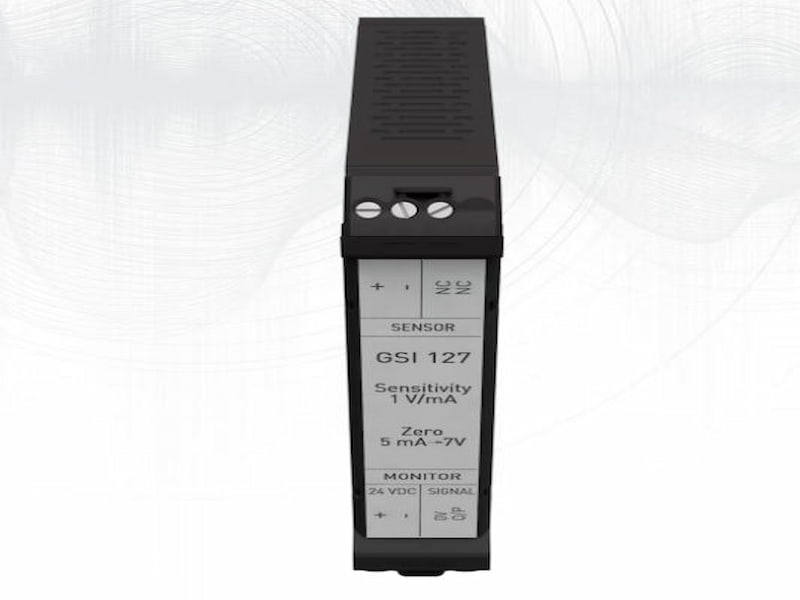

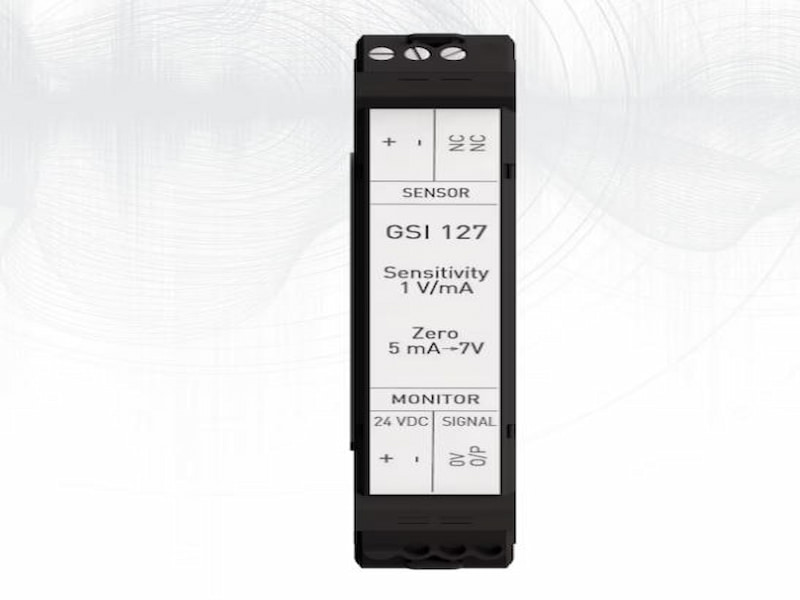

GSI127-021 244-127-000-021 A2-B01 Galvanic Separation Unit

GSI127-021 244-127-000-021 A2-B01 Galvanic Separation Unit

Description

GSI127-021 (serial number 244-127-000-021 A2-B01) is a dedicated electrical isolation signal conditioning unit for the online monitoring system of rotating machinery. It is used in conjunction with various vibration, pressure, and speed sensors, achieving electrical isolation between the on-site sensing equipment and the monitoring cabinet, eliminating ground loop interference, and standardizing the conversion of weak current measurement signals. It is widely used in power plant, petrochemical, and oil and gas industries for the state monitoring links of large-scale power equipment such as steam turbines, compressors, and fans.

This isolation module has explosion-proof compatible specifications. It is installed using standard DIN rail snap-in style, with 24V DC low-power supply. It provides an internal high-voltage electrical isolation barrier to block signal distortion caused by on-site grid noise and common-mode voltages of equipment. It supports stable long-distance high-frequency sensing signal transmission, has high signal conversion accuracy, and can directly replace the old isolation units of the same series without modifying the cabinet wiring. It continuously ensures the accurate upload of process measurement data such as vibration, displacement, and pressure to the monitoring system.

Features

Special electrical isolation unit for rotating equipment monitoring system, compatible with various industrial sensing probes

High-voltage electrical isolation design, eliminating ground loops and common-mode voltage interference, ensuring measurement accuracy

A2 explosion-proof compatible model, suitable for industrial sites with flammable and explosive media

B01 standard signal conversion curve, compatible with current output type vibration sensor signal link

Standard DIN rail installation, 24V DC power supply, low power consumption operation of the entire machine

Compatible with multiple types of measurement signals such as vibration, dynamic pressure, rotational speed, and displacement

Can directly be compatible with the old isolation units of the same series, and replacement does not require changes to the on-site wiring

Technical Specifications
