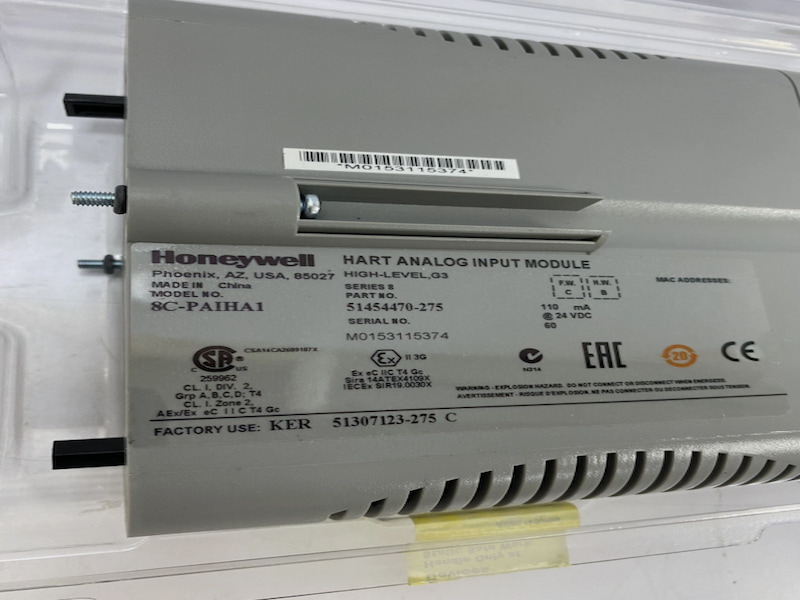

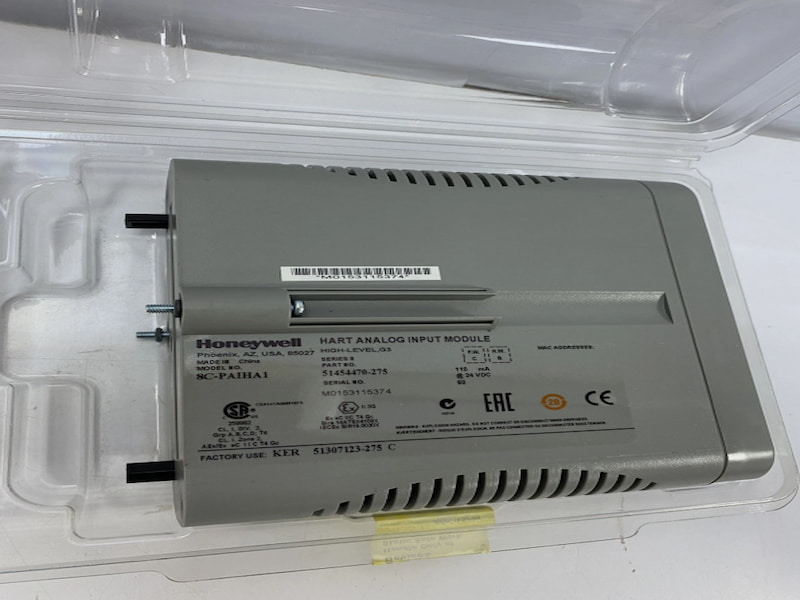

Honeywell 8C-PAIHA1 Analog Input with HART (16)

Honeywell 8C-PAIHA1 Analog Input with HART (16)

Description

Input Type Current：(2-wire or self-powered transmitters)

Input Channels：16 Channels (Single Ended type)

A/D Converter Resolution： 16 bits

Input Range： 4-20 mA (through 250 Ω)

Voltage Rating：24 VDC

Module Current Rating：110 mA

Common Mode Rejection Ratio, dc to 60 Hz (500 Ω source imbalance)：70 dB

Common Mode Voltage, dc to 60 Hz： -6 to +5 V peak

Normal Mode Rejection Ratio, at 60 Hz ：19 dB

Normal Mode Filter Response： Single-pole RC, -3 dB @ 6.5 Hz

Maximum Normal Mode Input： ± 30 Volts

Crosstalk, dc to 60 Hz (channel-tochannel)：-60 dB

Maximum Input voltage (any input  referenced to common, no damage)：± 30 Volts

Input Scan Rate： 50 ms

Hardware Accuracy (@ CMV = 0 V)：

  ± 0.075% of full-scale (23.5°± 2°C)

  ± 0.15% of full-scale (0 to 60°C)

Galvanic Isolation (any input terminal voltage referenced to common) ²：1000VAC RMS or ±1000 VDC

Isolation Technique ：Icoupler (in IOM）

Module Removal and Insertion Under Power：Supported

Transmitter Field Power Conditioning：Individually Protected Current Limiting Circuits. No fuse required

Function

The Analog Input Module accepts high level current inputs from transmitters and sensing devices

Features

Extensive self-diagnostics

Optional redundancy

HART-capable, multivariable devices

Fast loop scan

Internal or external field power selection

On board excitation power (no need for marshalling power)

Suitable for Configure / Status for HART Device

Galvanic Isolation
