The FC-QPP-0002 is a Quad Processor Pack (control processor module) for Honeywell Safety Manager systems, enabling synchronous processing and SIL3-compliant safety control.
Marque :
HoneywellNuméro d'article :
FC-QPP-0002Description :
Quad Processor PackOrigine :
USACondition :
NewDimension :
176 mm × 88.5 mm × 212 mmPoids :
1.3 kgPaiement :
Bank Transfer

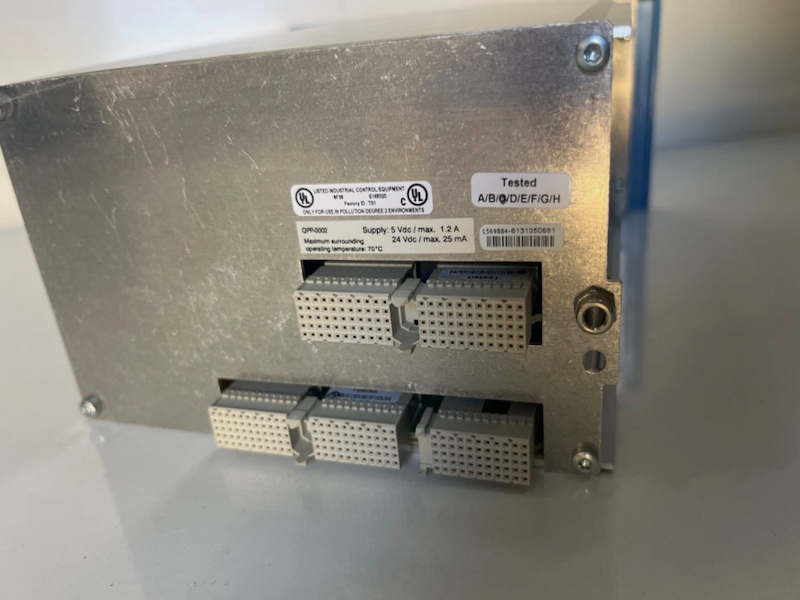

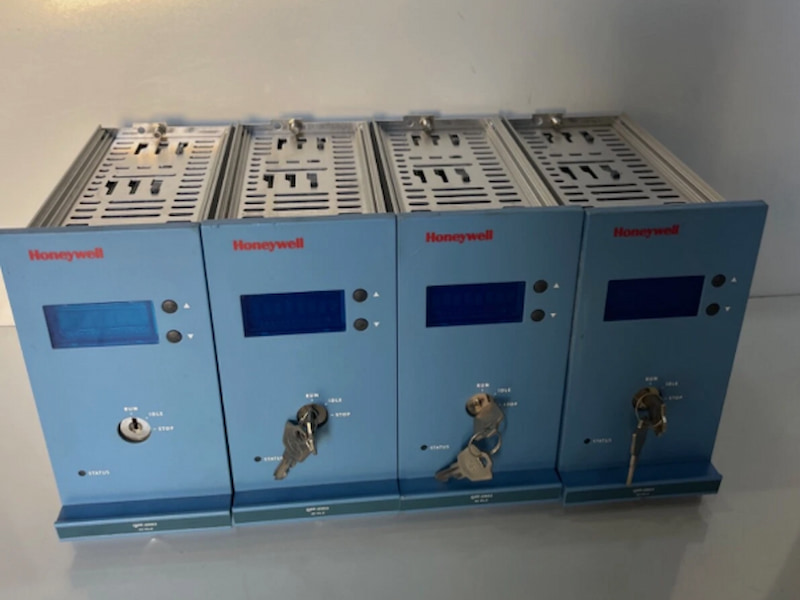

Honeywell FC-QPP-0002 Quad Processor Pack
Description
The Quad Processor Pack (QPP-0002) is the second generation (enhanced performance) processing module of Safety Manager and is located in the Controller chassis.
The QPP-0002 is backwards compatible with, and a one-on-one spare part for the QPP-0001, when installed in Safety Managers running R121 firmware or higher.
A non-redundant Controller contains one QPP-0002 module, a redundant Controller contains two QPP0002 modules.
The slot of the Quad Processor Packs within the Controller chassis is pre-determined .
The Quad Processor Pack (QPP-0002) is the heart of Safety Manager. It controls all system operations. The QPP-0002 module reads the IO input signals and executes the Controller File as created by the user in graphical Functional Logic Diagrams (FLDs). The results of the Controller File are then transmitted to the output interfaces. In Safety Manager configurations with a redundant Controller, the two QPP-0002 modules synchronize their operation through a dedicated redundant communication link between the two Control Processors. Continuous testing of the Safety Manager hardware by the QPP-0002 module ensures safe control of the process as well as extensive system and process equipment diagnostics.
The QPP-0002 module has two processors and two memory sets. Hardware data-comparators compare every read and write action of the processors, and trip the watchdog if any difference in the data is detected. Additional test hardware enables full testing of the QPP-0002 module to achieve diagnostic coverage higher than 99%. This allows one QPP-0002 module to run applications up to and including SIL3 without time limitation. Redundant Controller configurations result in a 2oo4D voting architecture.
Technical Specifications
| Manufacturer | Honeywell |
| Part Number | FC-QPP-0002 |
| Ordering Information | FC-QPP-0002 |
| Product Catalog | Experion® PKS C300 |
| Description | Quad Processor Pack |
| Voltage | 24 vdc |
| Current | 35 mA |
| Dimensions | 176 mm × 88.5 mm × 212 mm |
| Weight | 1.3 kg |
