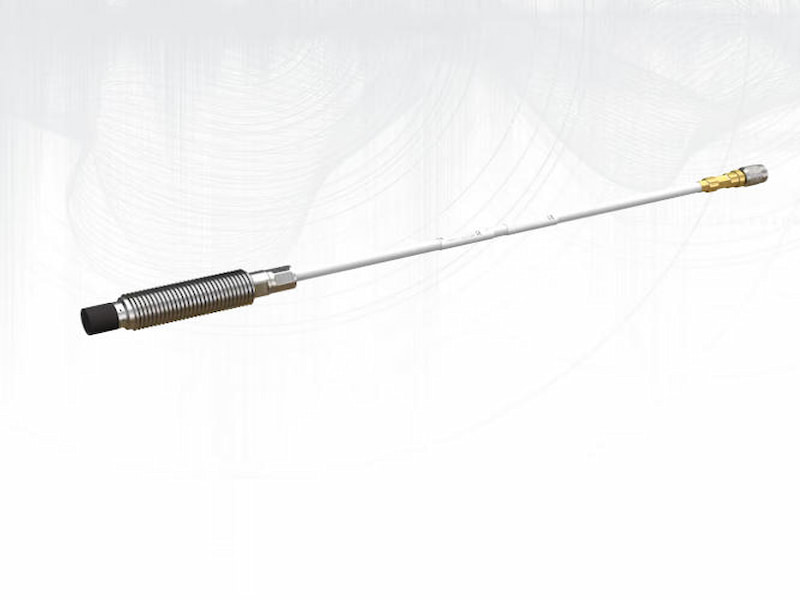

TQ902-011 111-902-000-011 A5-B1-C72-D2-E10000-F2-G9800-H10 Proximity Sensor

TQ902-011 111-902-000-011 A5-B1-C72-D2-E10000-F2-G9800-H10 Proximity Sensor

Description

TQ902-011 is a dedicated eddy current proximity sensor for Meggitt Vibro-Meter vibration monitoring systems. It precisely measures shaft vibration and axial displacement in rotating machinery, conforming to API 670 standards. This sensor serves as a core component for condition monitoring in large equipment such as turbines and compressors.

Constructed from stainless steel with high-temperature resistance, this sensor is certified for use in hazardous explosion-proof zones. Featuring a standard mounting structure and coaxial cable output, it delivers long-term stable operation in high-temperature, high-interference industrial environments. It is compatible with critical rotating equipment including gas turbines, steam turbines, and generators.

Features

• Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans
• 2 or 4 mm measurement range (Ø8.2 mm sensor)
• −40 to 180 °C operating temperature, IP68 protection rating
• 0.5, 1.0, 1.5, 2.0 or 5.0 m integral coaxial cable
• Versions certified for use in potentially explosive atmospheres
• Conforms to API 670 5th edition

Technical Specifications
