The IOC16T 200-565-000-012 is 16-channel signal conditioning terminal board matched with data acquisition card for turbomachinery monitoring systems.
Marque :
VMNuméro d'article :
IOC16T 200-565-000-012Description :
16-Channel Input/Output CardOrigine :
SwitzerlandCondition :
NewDimension :
40 mm x 40 mm x 24 mmPoids :
385 gPaiement :
Bank Transfer

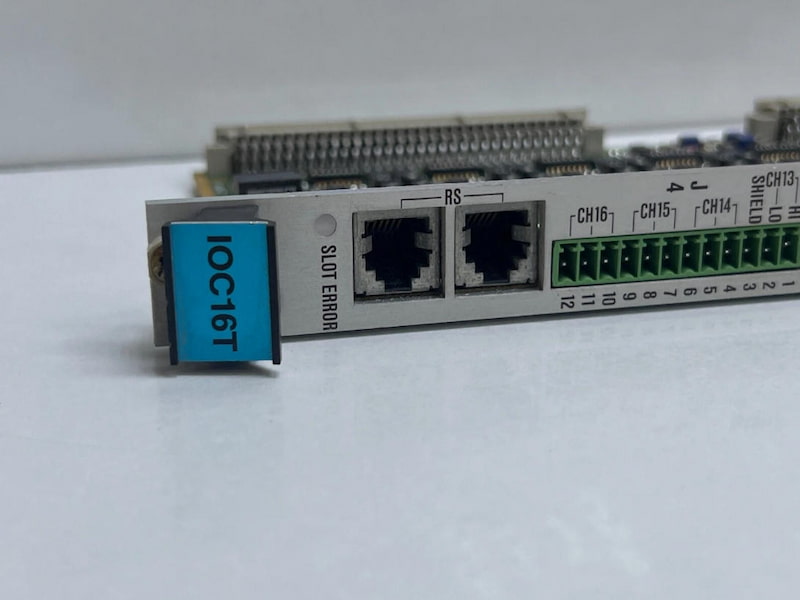

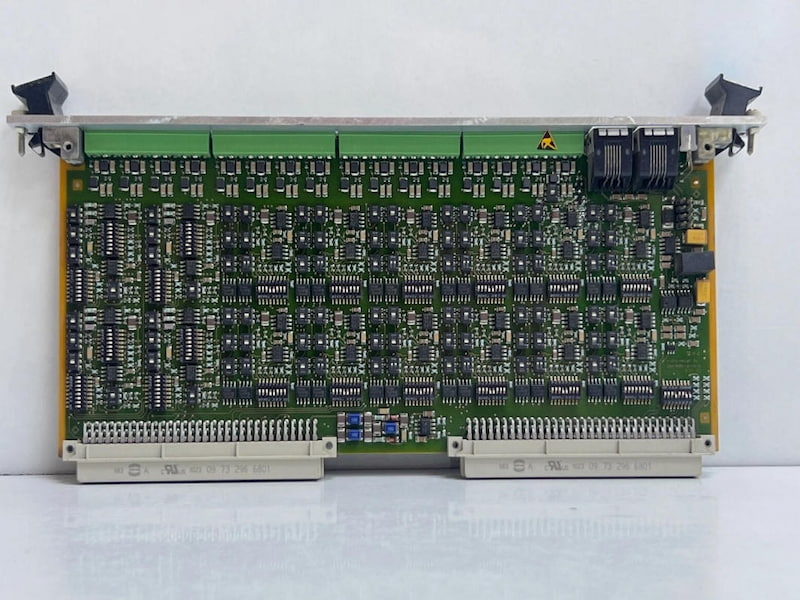

IOC16T 200-565-000-012 16-Channel Input/Output Card
Description
IOC16T (part number 200-565-000-012) is a 16-channel post-signal conditioning terminal board, which is used in pairs with a 16-channel status acquisition card. It serves as a signal relay unit between the on-site sensors and the acquisition card, uniformly integrating vibration, phase detection, and process simulation signals. It is equipped with multiple-level filtering and isolation circuits to filter out electromagnetic interference from the on-site lines and ensure that the original measurement signals are sent to the acquisition card for processing without any loss.
The module is equipped with large-sized threaded terminal blocks, which support stable wiring with various-sized cables. It features a full-channel surge protection design and is suitable for complex electromagnetic cabinet environments in power plants and oil and gas industries. It relies on the high-speed bus on the backplane of the frame for bidirectional data transmission with the acquisition card, supporting hot-swappable maintenance of the frame without interrupting the online monitoring of the unit. It is mostly used in steam turbines and compressors for multi-point vibration diagnosis systems.
Features
16 independent signal input channels, compatible with various industrial sensors such as IEPE, eddy current, pulse, and 4-20mA
Built-in signal conditioning, anti-interference filtering and electrical isolation to suppress on-site interference
Full-channel surge and overvoltage protection to meet industrial EMC electromagnetic compatibility standards
Post-mounted 6U rack installation, paired with the acquisition card, with high-speed backplane bus communication
Screw-fixed terminal block, secure wiring, convenient for on-site wiring and maintenance
Support for hot-swapping of the rack while powered on, without affecting the overall monitoring operation
-25℃ to +65℃ wide temperature range stable operation, suitable for high and low temperature conditions of the cabinet
A single card can centrally connect 16 measurement points, significantly simplifying the wiring layout of multiple units
Technical Specifications
| Manufacturer | VM |
| Part Number | IOC4T |
| Ordering Information | 200-565-000-012 |
| Product Catalog | Vibration Monitoring |
| Description | 16-Channel Input/Output Card |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 40 mm x 40 mm x 24 mm |
| Weight | 385 g |
