MPC4 200-510-017-019 Machinery Protection Card

MPC4 200-510-017-019 Machinery Protection Card

Description

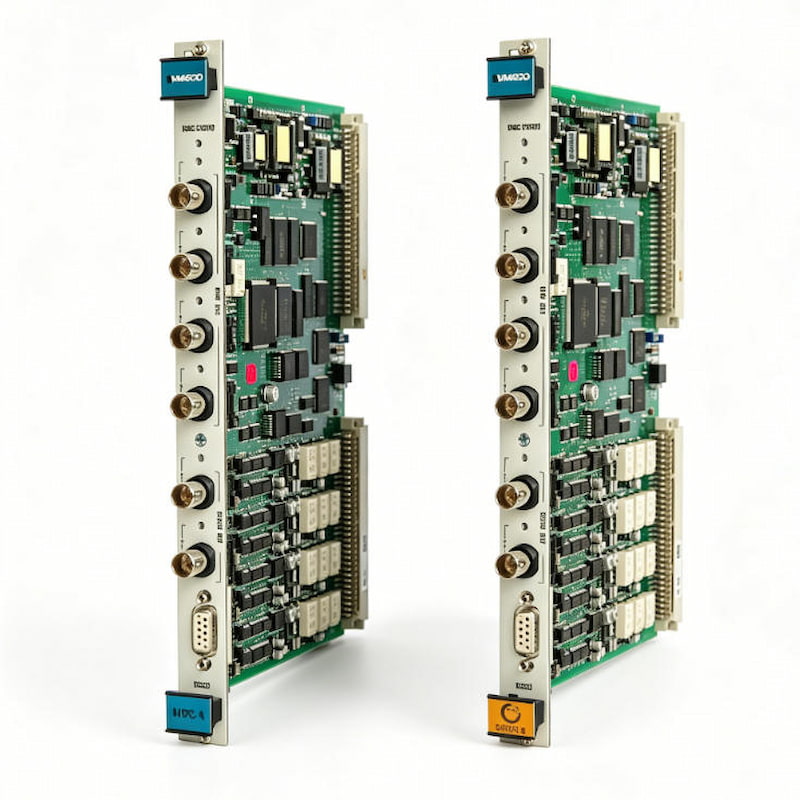

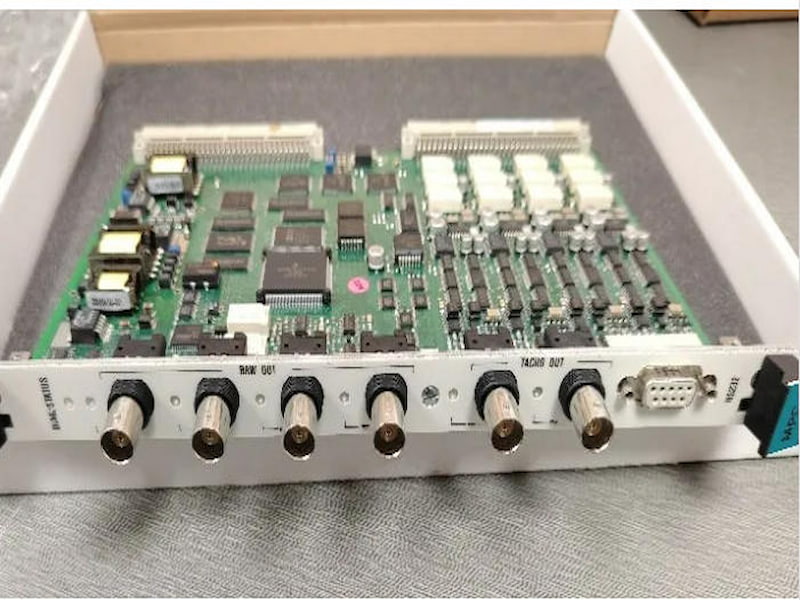

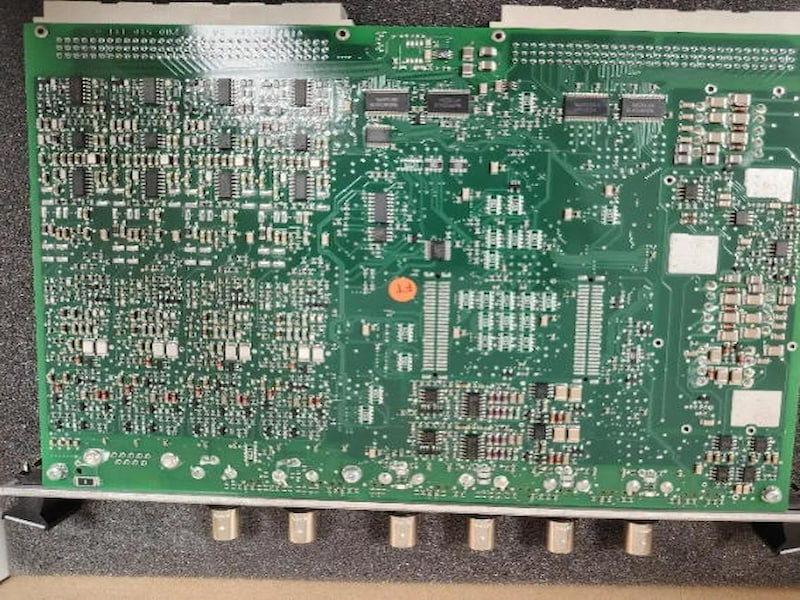

MPC4 (part number 200-510-017-019) is a dedicated protection main control card for 4-channel units. It must be used in conjunction with IOC4T terminal card as a complete set. It is equipped with a DSP digital computing chip, independently processing 4 channels of vibration, position movement signals, and 2 channels of rotational speed key signal. It supports multi-dimensional parameter calculations such as filtering, order tracking, RMS / peak value, etc., and can real-time determine the operational risks of the unit.

The module is equipped with an online diagnostic mechanism for all channels of sensors, which can identify abnormalities such as broken wires and probe failures. Each channel supports two levels of warning and danger programmable thresholds. Combined with delay, hysteresis, and voting alarm logic, when an anomaly occurs, it outputs an interlock signal to trigger the protection shutdown of the unit, and is widely used in safety protection cabinets for key rotating equipment such as steam turbines, compressors, and generators.

Features

4 dynamic measurement channels + 2 speed-phase channels, channels are independent and programmable

Compatible with various industrial machine monitoring sensors such as eddy current, IEPE, and pulse

On-board digital filtering, integral differentiation, order tracking high-precision computing functions

Multiple alarm thresholds, supports delay, hysteresis, and/or voting protection logic

Built-in sensor fault self-check, real-time identification of line and probe abnormal states

Front panel BNC test port, 7 LED indicators intuitively display channel conditions

Rack hot-swappable design, module replacement does not interrupt the protection function of the machine

-25℃ to +65℃ wide temperature operation, standard 6U rack adapted complete monitoring system
